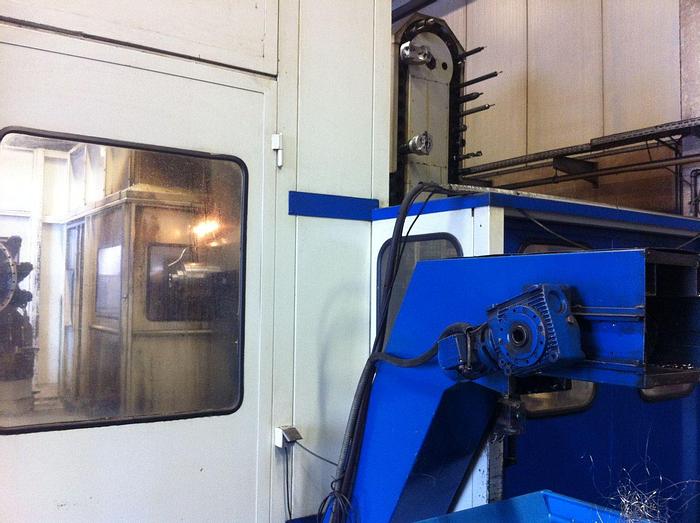

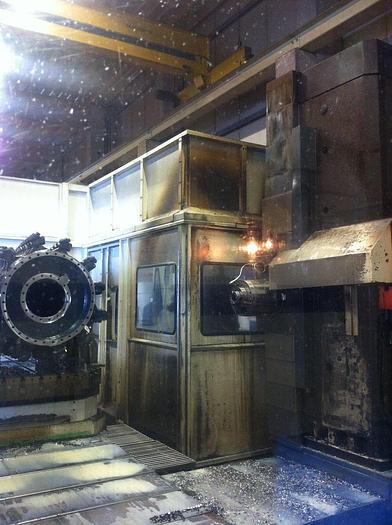

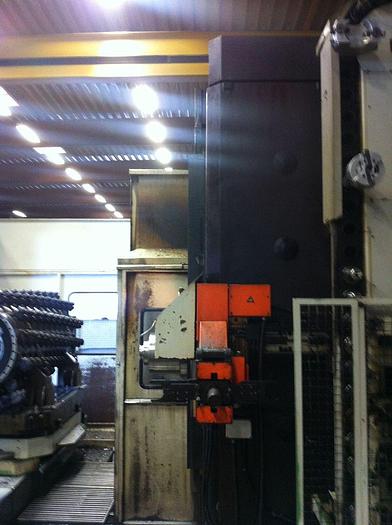

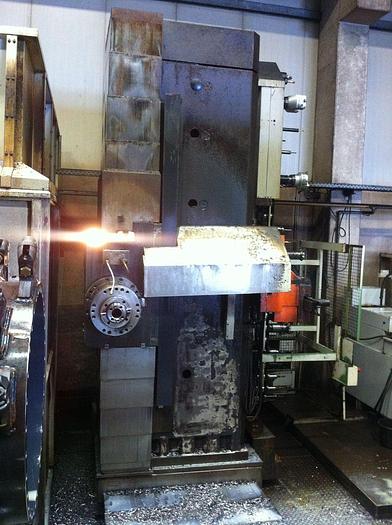

1999 TOS WHN 130 CNC (Q, MC) Horizontal milling and boring machine
orCall +44 20 3287 0537
Specifications
| Manufacturer | TOS |
| Model | WHN 130 CNC (Q, MC) |
| Year | 1999 |
| Stock Number | 157522811 |

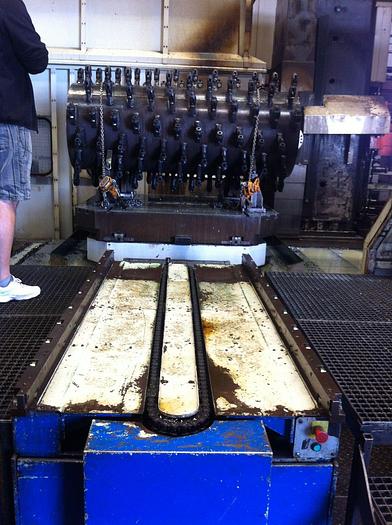

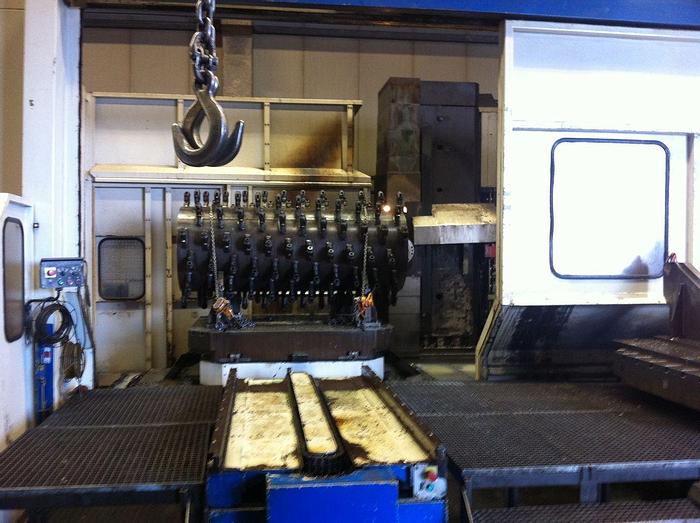

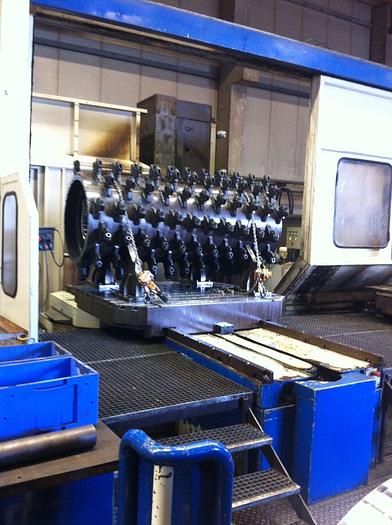

| Accessories: | Automatic tool changer for 60 pcs./ Tool cooling / Chip conveyor / |
Description

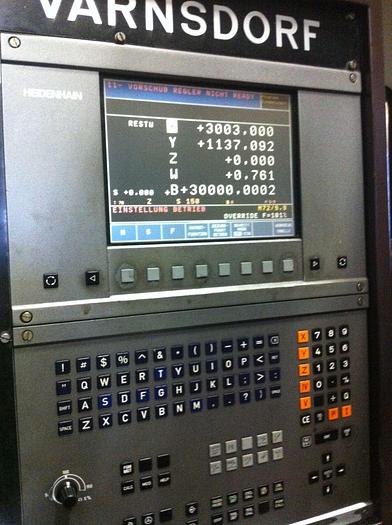

Control system Heidenhain TNC 426
Working range:
Spindle diameter 140 [mm]
Spindle taper ISO 50
Cross table adjustment (X) 3000 [mm]
Headstock vertical adjustment (Y) 1830 [mm]
Vertical travel (Z) 1250 [mm]
Spindle extension (W) 560 [mm]

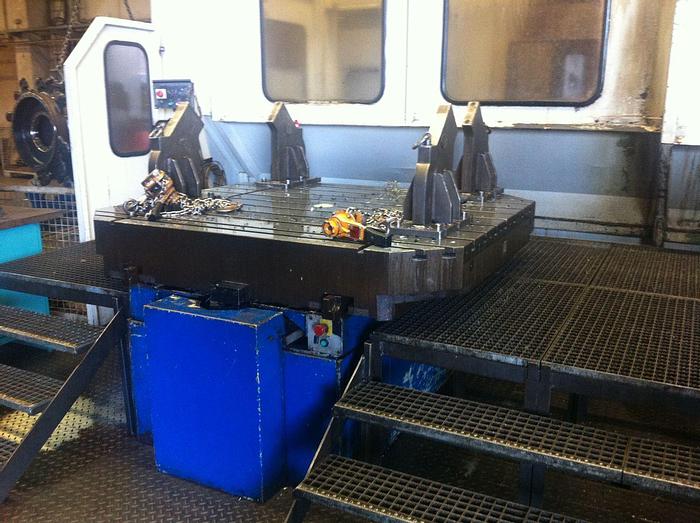

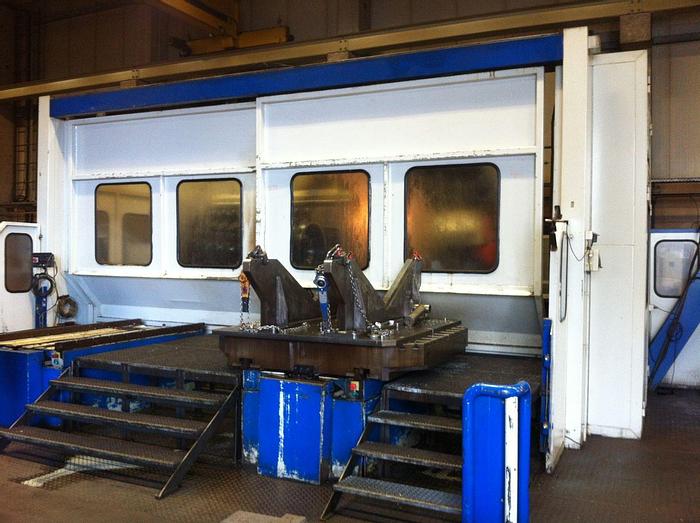

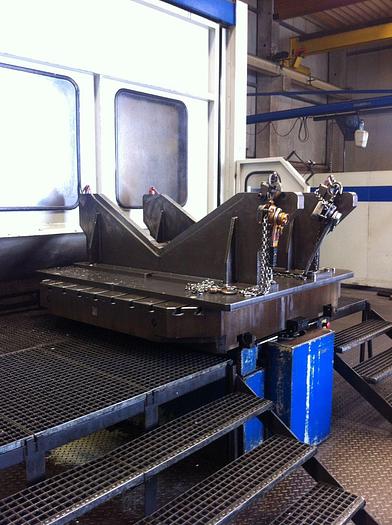

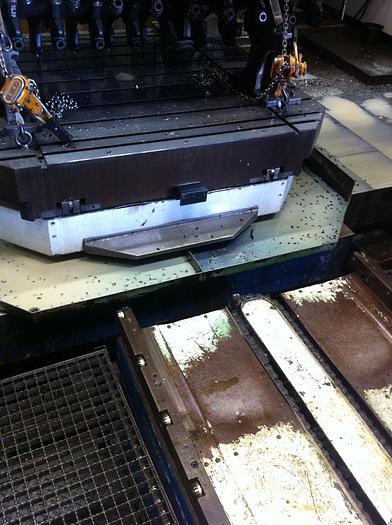

2 clamping tables, clamping area 1800 x 1600 [mm]
Speed range 10 - 2500 [min-1]
Main motor power 37.0 [kW]
Max. workpiece weight 8000 [kg]
