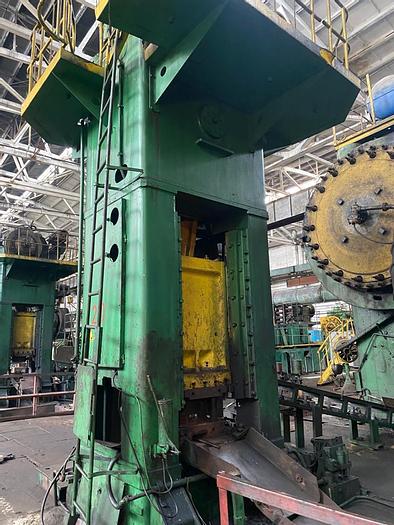

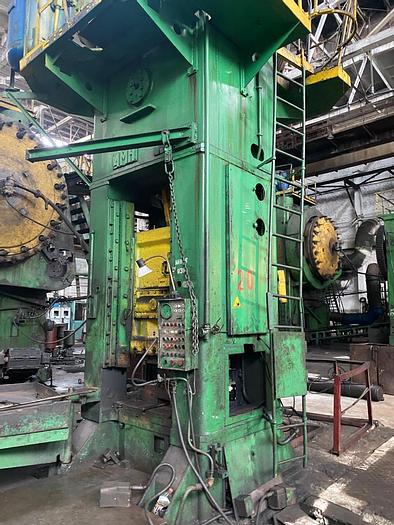

1990 KUZLITMASH KD9536,400TN Mechanical trimming press

Maximum force ton-force 400 Slider stroke length mm 400 Slider strokes per minute 25 Maximum distance between table and slider (in lower position of slider) mm 470 Size of adjustment of distance between down-stamp a plate and slider mm 160 Table overall dimensions: mm - from front to rear 1000 - from left to right 1000 Slider overall dimensions: mm - from front to rear 800 Main electric motor power kW 40 Press overall dimensions mm - length 3470 - width 3140 - height 5940 Press weight kg 36000
