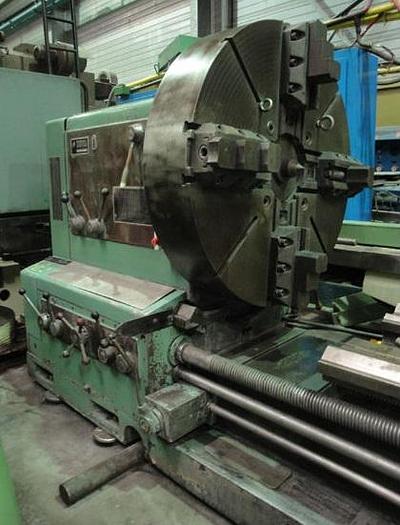

2000 MAUSER 1240x7000 Universal Lathe

Center height 620 mm

Distance between centers 7000 mm

Maximum clearance span 1600 mm

Maximum span above the transverse skids 870 mm

Clearance width 600 mm

Hole through the spindle 112 mm

Rear headstock bushing cone CM 100

Bed width 770 mm

Number of spindle speeds 18

Spindle speed 8 ÷ 400 rpm

longitudinal feeds 0.0280 to 2.82 mm/rev

transverse feed 0.0075 to 0.73 mm/v.

Rapids Oui

Number of metric threads 78

Metric thread 0.25 to 192 mm

Number of Whitworth threads 102

Whitworth threads 1/16–72 fillets in sauce

Diametrical thread pitch 3/8 by 160

Module thread 0.50 by 72

Engine 30 kW

Approximate weight 24500 kg

Size 10340х1800х2100 mm
