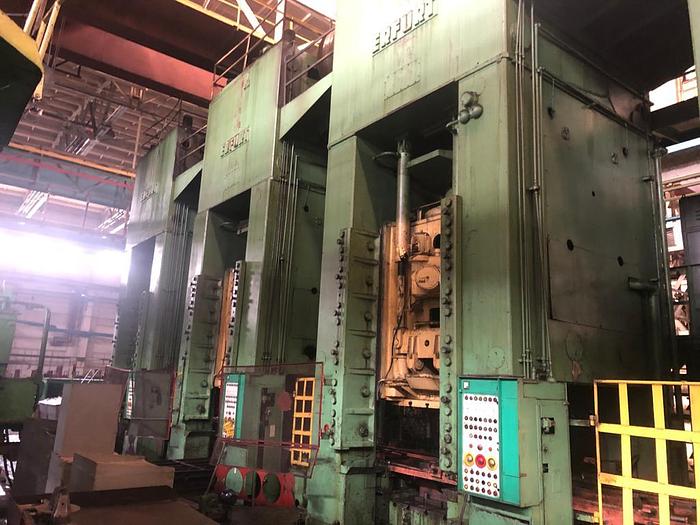

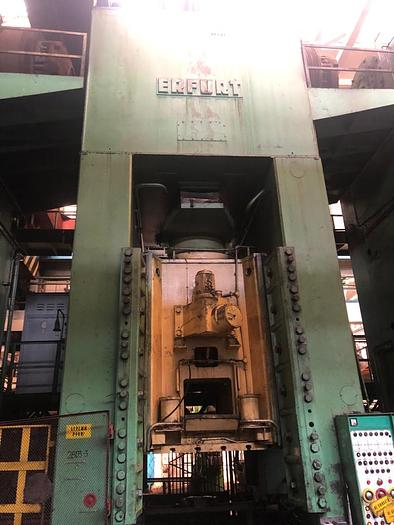

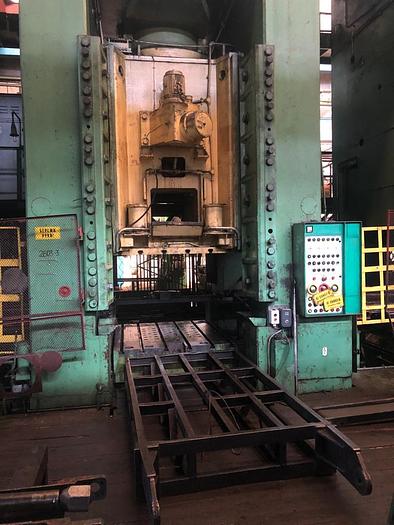

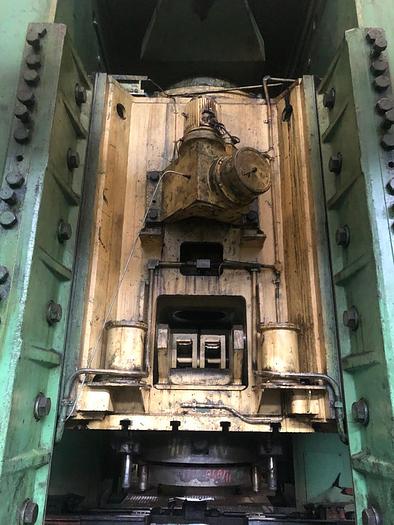

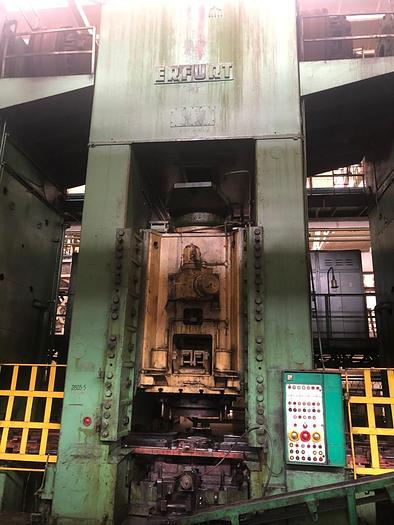

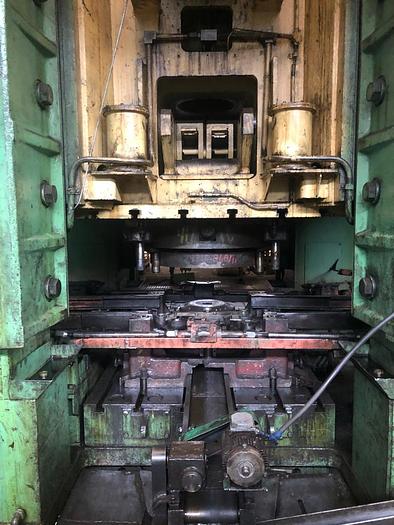

1967 ERFURT PKZ (I) 1250/1600 Closed single-crank press line for deep drawing

Capacity, ton 1250

Stroke, mm 500

Maximum drawing depth,mm 200

Min number of no-load stroke: 14 /per min

Slider adjustment, mm 315

Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 1250

Table size, mm 1600 x 1800

Slider size, mm 1530 x 1800

Aperture in a table, mm 1100 x 1100

Distance between columns, mm 1600

Cushion travel, mm 200

Cushion capacity, ton 200

Maximum push force ton 31.5

Main motor power, kW 125

Press overall dimensions:5850x3100x8950 mm

Press weight, kg 195000
