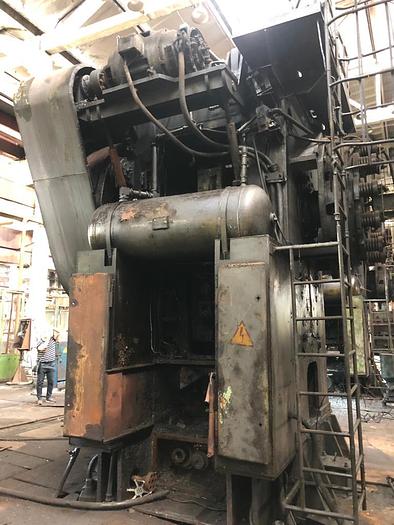

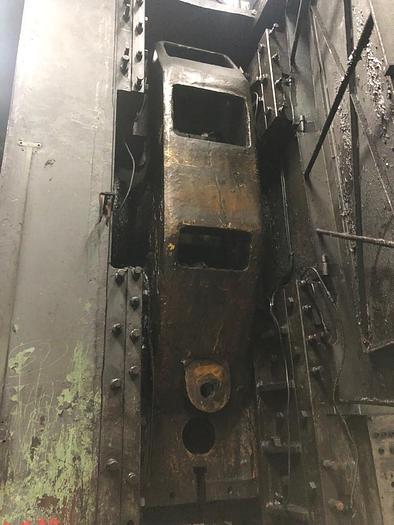

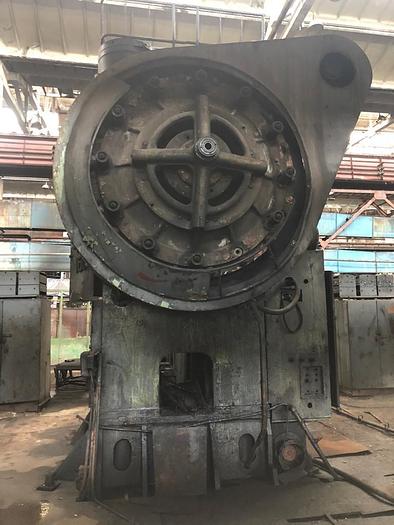

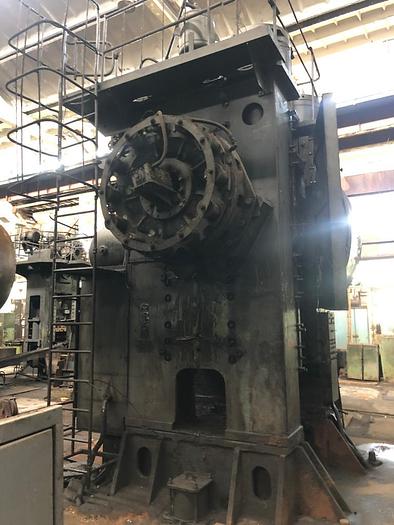

1978 TMP VORONEZH K04.038.842 (KB8042) 1600T Hot stamping press

Capacity 1600 ton

Slide stroke 300 mm

Slide stroke length at maximum force 0,16 mm

Distance adjustment between table and slider 10 mm

Number of strokes per minute 85

Length of a rod 920 mm

The closed height 660 mm

Table overall dimensions 940×1200 mm

Table height above floor level 450 mm

Slide dimensions 860×910 mm

The size of lateral windows, Height 560 mm

The size of lateral windows, Width 600 mm

Main motor 90 kW

Dimensions 4850 × 3515 × 5570 mm

Weight 119680 kg
