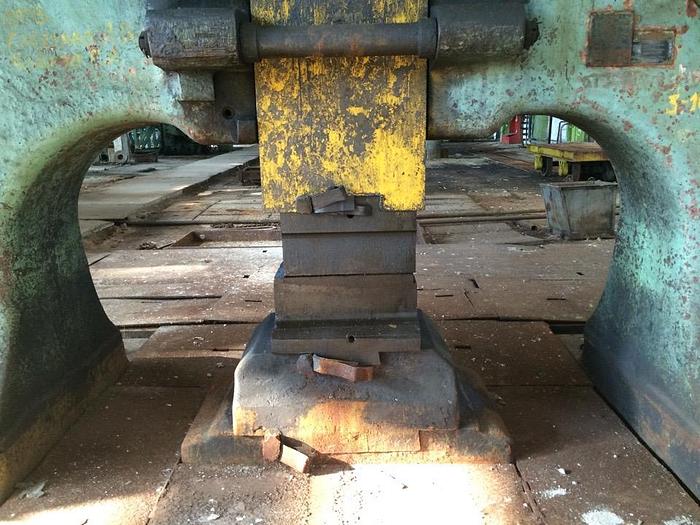

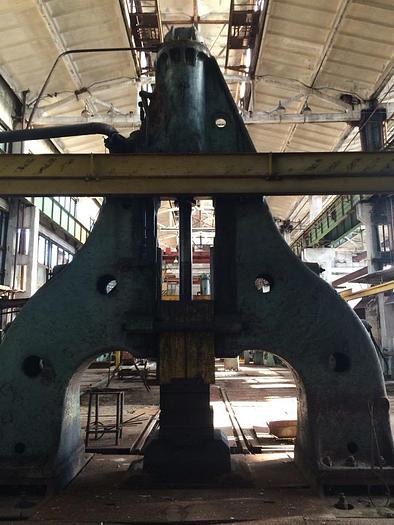

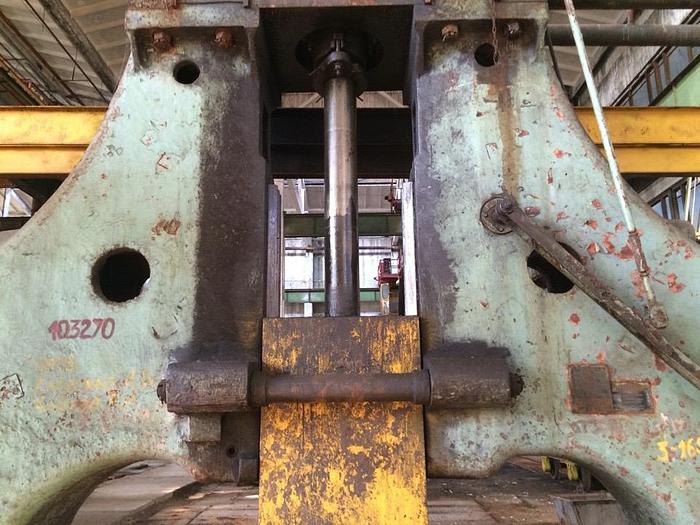

1980 VORONEZH M1345 (kg 3150) Open die forging hammer

Weight of impact (Nominal weight of falling parts) kg 3150

Energy of impact kj 80

The greatest number of impacts it is brisk in a minute 56

Distance between racks in light mm 2800

Height working area mm 630

The sizes of a mirror it is brisk 600 x 340

Distance from a mirror bottom it is brisk up to a level of a floor mm 750

Pressure of air before an intake 6-8

Machine overall dimensions: mm

·length 5000

·width 2500

·height 4500

Weight of an anvil-block kg 41 250

Weight of a hammer with an anvil-block kg 70 700
