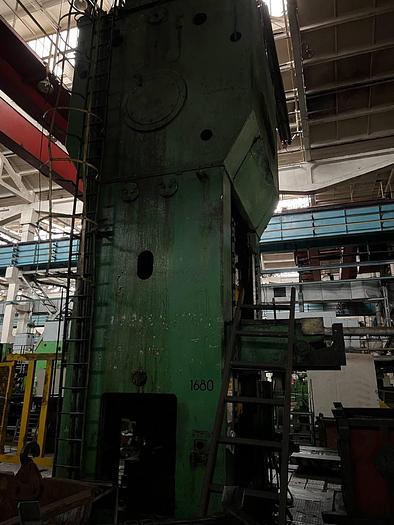

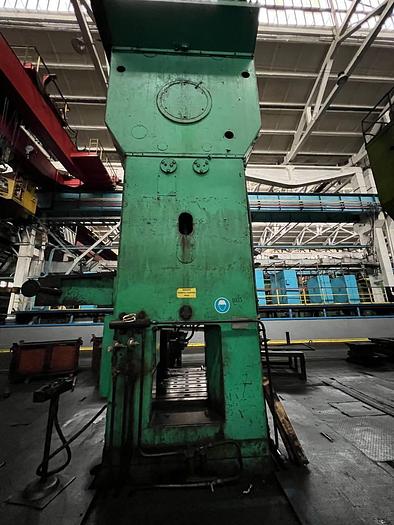

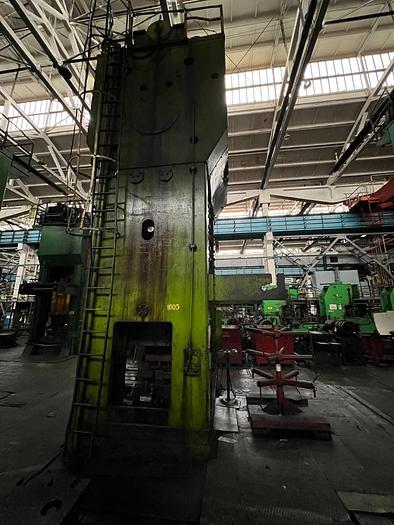

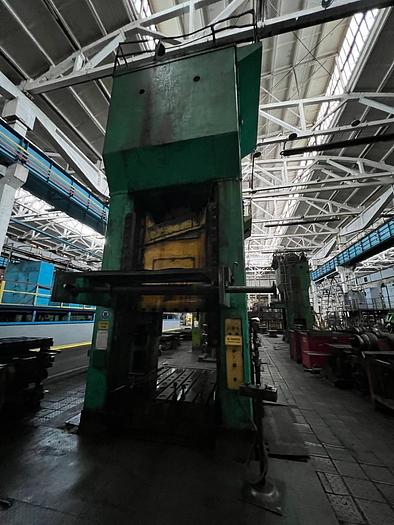

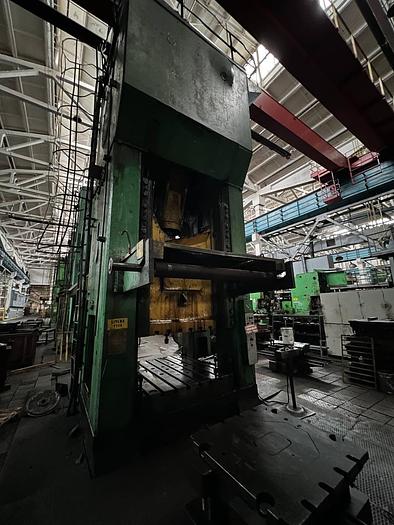

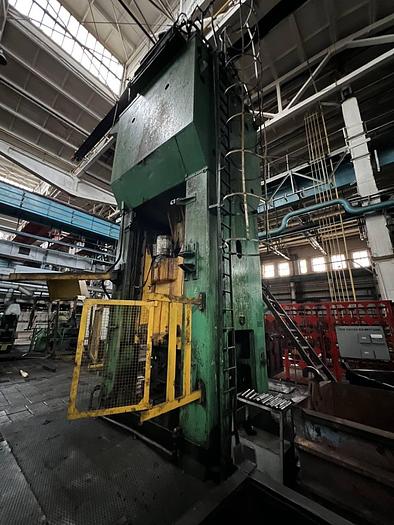

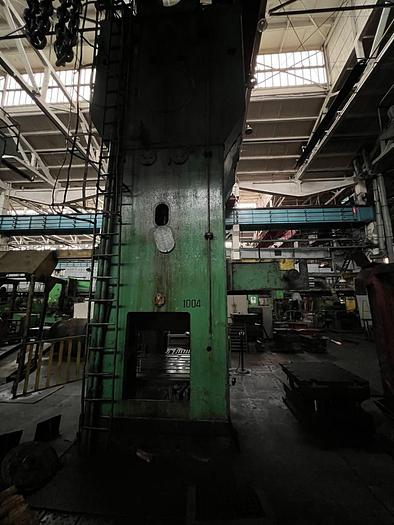

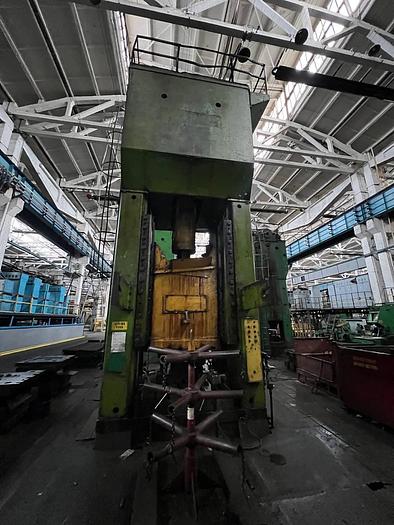

1987 ERFURT PKZ 1250/1600 Closed single-crank stamping press

Capacity, ton 1250

Stroke, mm 500

Min number of no-load stroke: 8 /per min

Slider adjustment, mm 215

Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 1100

Table size, mm 1600 x 1850

Slider size, mm 1300 x 1400

Table gap size, mm 1100 x 1100

Distance between columns, mm 1630

Distance between slides, mm 1580

Cushion travel, mm 200

Cushion capacity, ton 200

main motor power, kW 90

Press weight, kg 110000
