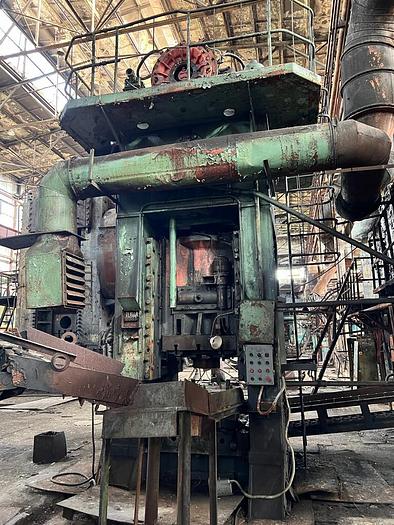

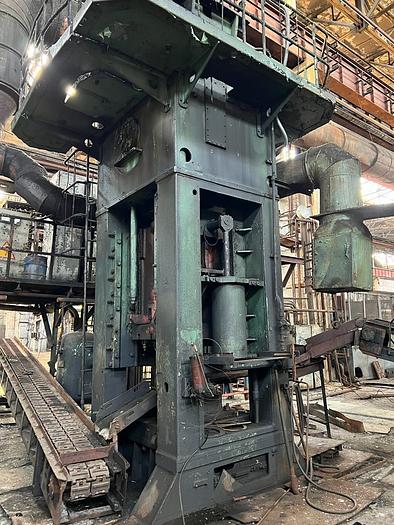

1980 TMP VORONEZH K9538, 630t TRIMMING PRESS

Nominal effort: 630 tons

Course stroke: 420 mm

Number of strokes in a minute: 20

Bolster plate-to-ram adjustable stroke: 180 mm

Max. distance plate-to-ram (in lower position of slider): 750 mm

Slider dimensions 1000x1000 mm

Table size: 1250x1250 mm

Dimensions of the hole in the table 800x800mm

Thickness of the sub-stamp plate 180 mm

Height above floor level 600 mm

Main motor power: 56 kW

hydropneumatics pillow in the table

Press overall dimensions:

-Length: 3280 mm

-Width: 3470 mm

-Height: 6190 mm

Press weight: 52650 kg
