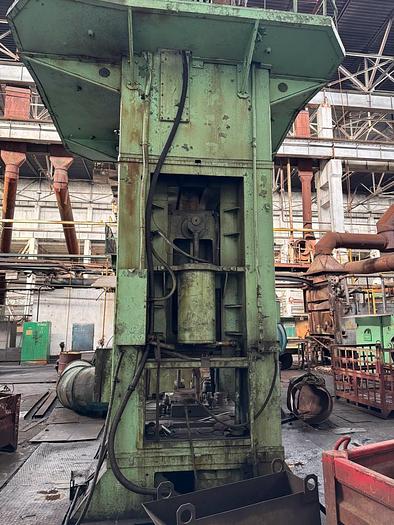

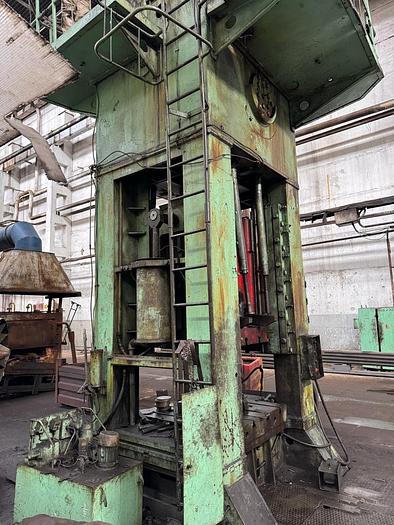

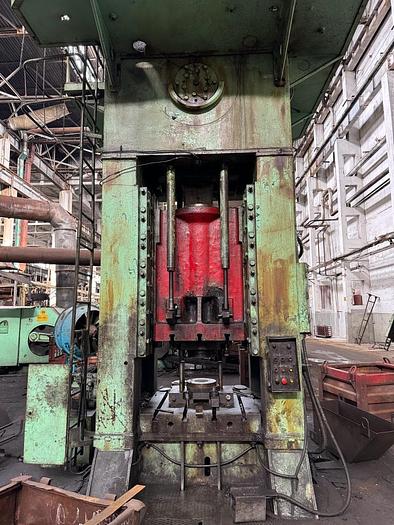

1980 TMP VORONEZH K2538 630 ton MECHANICAL TRIMMING PRESS

Capacity, ton 630

Stroke path till its position where it

develops nominal capacity, mm 16

Slider stroke, mm 320

Slider strokes, spm 20

Max. distance between table and slider, mm 800

Distance adjustment between table and slider,mm 180

Table size, mm 1250 x 1250

Slider dimensions, mm 1000 x 1000

Opening in the table, mm 800 x 800

Thickness of bolster, mm 180

Cushion stroke, mm 130

Main motor power, kW 58

Machine dimensions, mm 3280 x 3470 x 6190

Machine weight, kg 55500
