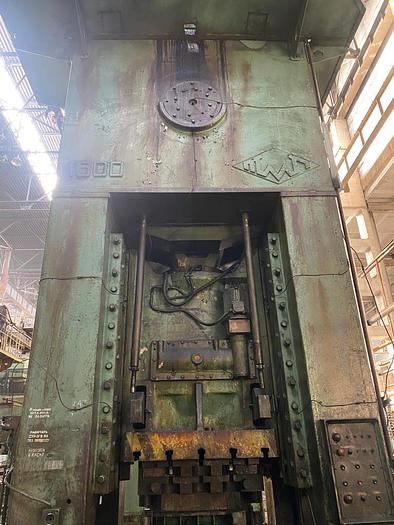

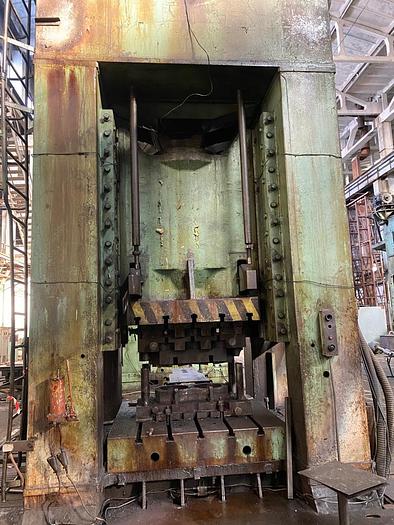

1981 TMP VORONEZH K2542 1600T Closed single-crank press

Technical characteristics

Nominal force, mc 1600

Not reach the slide to BDC, mm 12

Progress in the slide, mm 400

The frequency of continuous strokes, min-1 16

The highest frequency of single strokes, min-1 12

Closed height mm 870

Adjusting the closed height 220 mm

Size slider, mm

left to right 1600

front to back 1600

Dimensions plate, mm

left to right 1600

front to back 1600

Power of main drive, kW 110

Dimensions, mm

left to right 4670

aft 4670

height above floor level 8110

W 154 000kg
