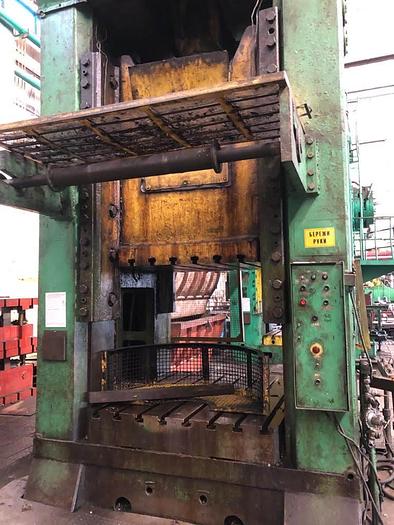

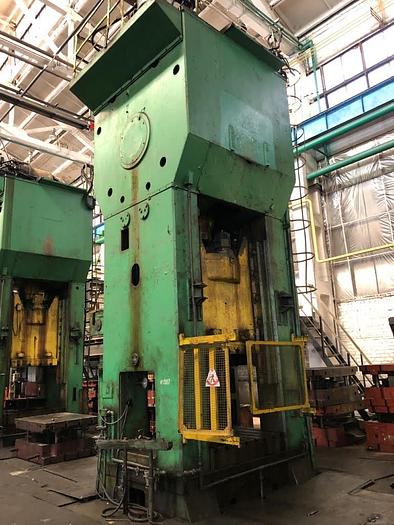

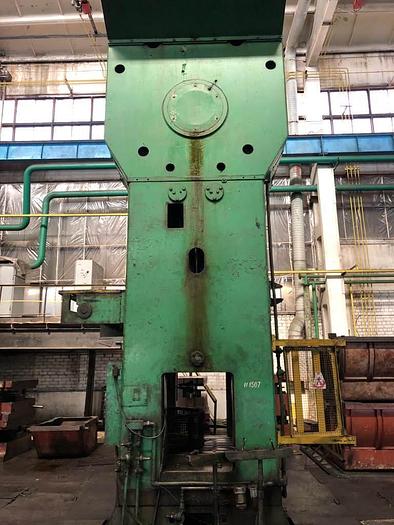

Trimming press ERFURT PKZe 1250

Capacity, ton 1250 Stroke, mm 500 Min number of no-load stroke: 8 /per min Slider adjustment, mm 215 Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 860 Table size, mm 1600 x 1850 Slider size, mm 1300 x 1400 Table gap size, mm 1100 x 1100 Distance between columns, mm 1630 Distance between slides, mm 1580 Cushion travel, mm 200 Cushion capacity, ton 200 main motor power, kW 90 Press weight, kg 130000
