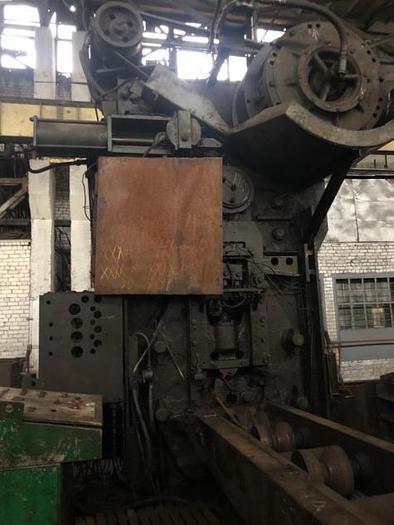

1993 ERFURT ScPK-500.1 Billet shear
orCall +44 20 3287 0537
Specifications
| Manufacturer | ERFURT |
| Model | ScPK 500.1 |
| Year | 1993 |
| Stock Number | 144381199 |
| Quantity | 1 |
| Shearing power T | 500 |
| Max billet cut mm: | 132 |
Description
course of the blade slide 100 mm
number of moves at idle position 25 / min
Main drive motor 30 kw in 1480 rev / min
cutting power
Strength of the material
Tensile N/mm2 450 500 600 700 800N/mm2
square mm 125 118 105 95 85
round mm 132 125 112 100 90
flat 375x 60 45 40 35 32
Weight 23,000 kg (50,692 lb)
Length x width x height
1850 mm × 2450 mm × 3750 mm
