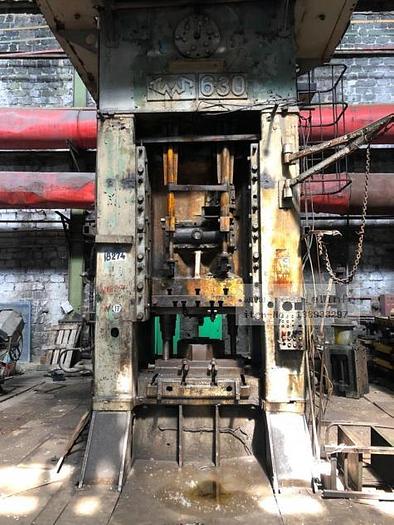

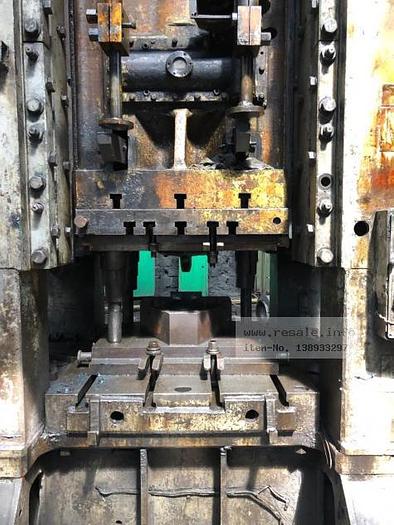

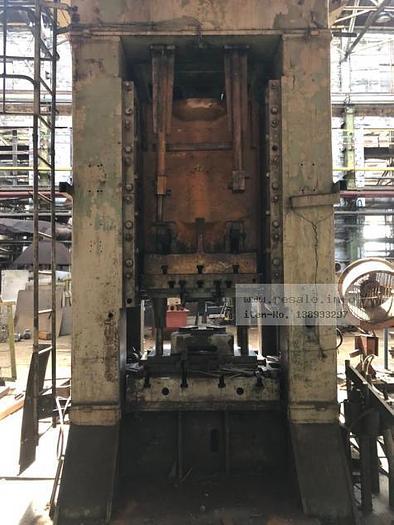

1983 MECHANICAL TRIMMING PRESS TMP VORONEZH K2538 630 ton

Capacity, ton 630 Stroke path till its position where it develops nominal capacity, mm 16 Slider stroke, mm 320 Slider strokes, spm 20 Max. distance between table and slider, mm 800 Distance adjustment between table and slider,mm 180 Table size, mm 1250 x 1250 Slider dimensions, mm 1000 x 1000 Opening in the table, mm 800 x 800 Thickness of bolster, mm 180 Cushion stroke, mm 130 Main motor power, kW 58 Machine dimensions, mm 3280 x 3470 x 6190 Machine weight, kg 55500
