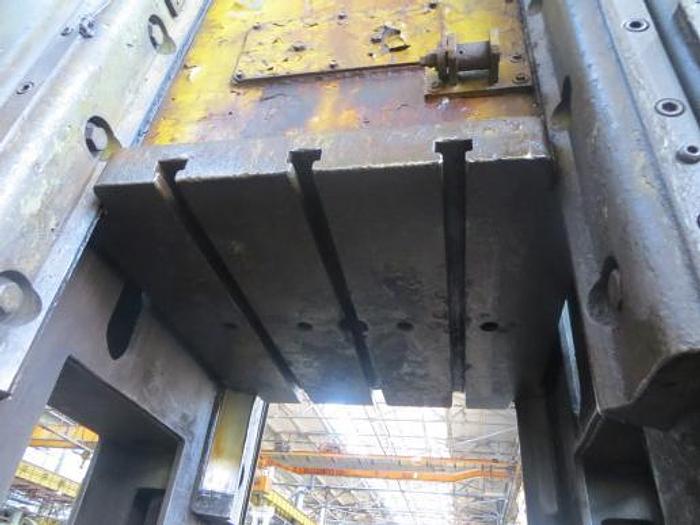

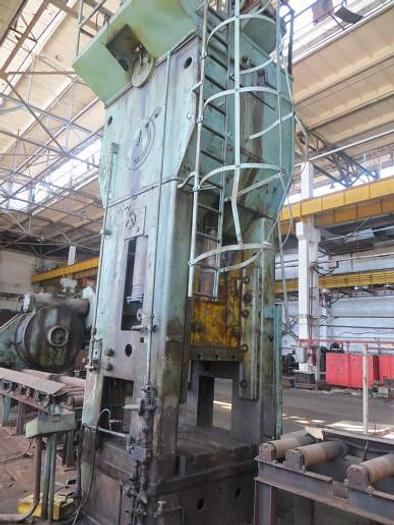

1975 MECHANICAL TRIMMING PRESS ERFURT PKZ 400

Capacity, ton 400 Stroke 400 mm Table size (left to right) 1000 mm Table size (front to back) 1320 mm Ram (left to right) 800 mm Ram (front to back) 1060 mm Ram adjustment 200 mm Strokes 18 min^-1 Shut height 685 mm Driving power 32 kW Driving power overall 38 kW Total weight 33,8 t Required space 2550 x 2700 mm Height of machine above floor 6300 mm Upper ejector Number / Power 20 t / 125 mm
