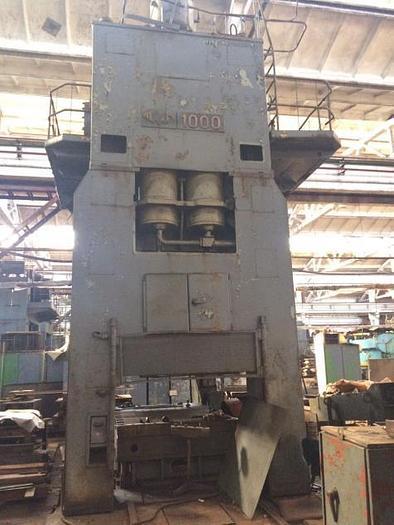

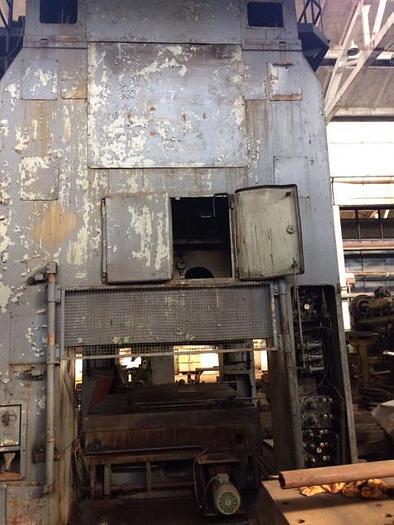

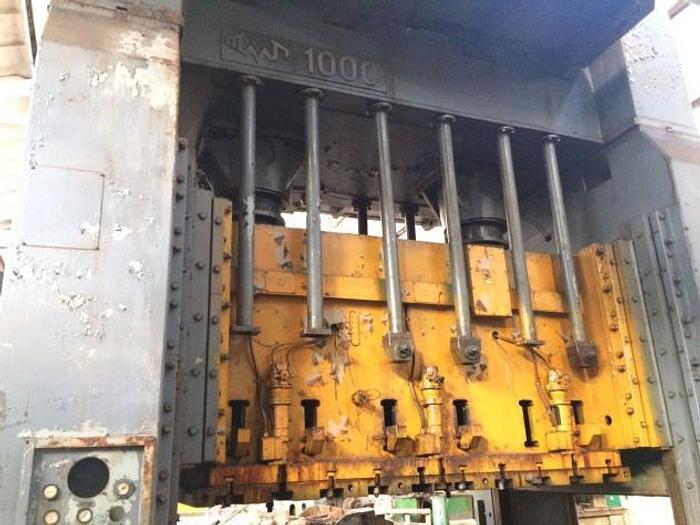

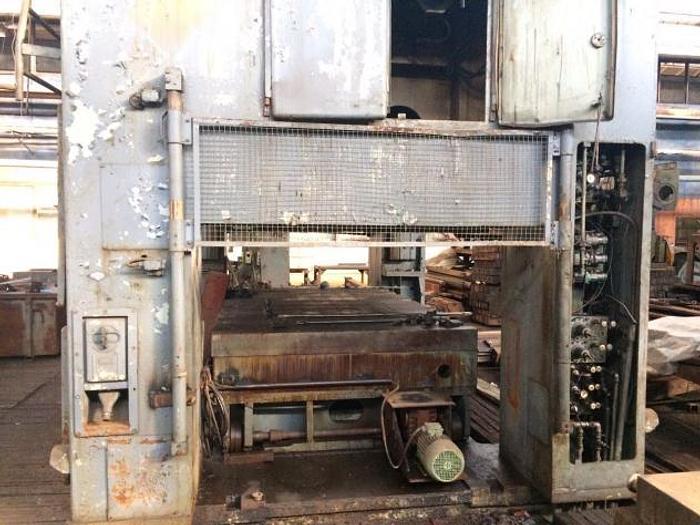

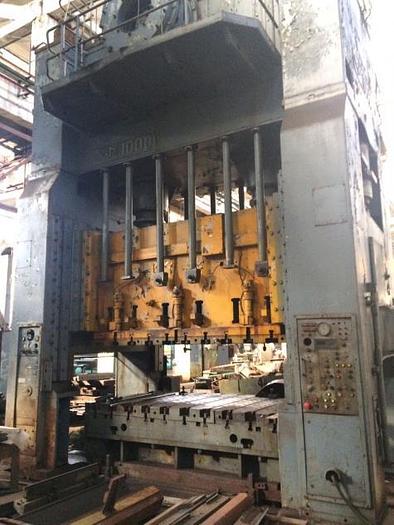

1988 Voronezh KA3540,1000TN MECHANICAL SHEET STAMPING PRESS

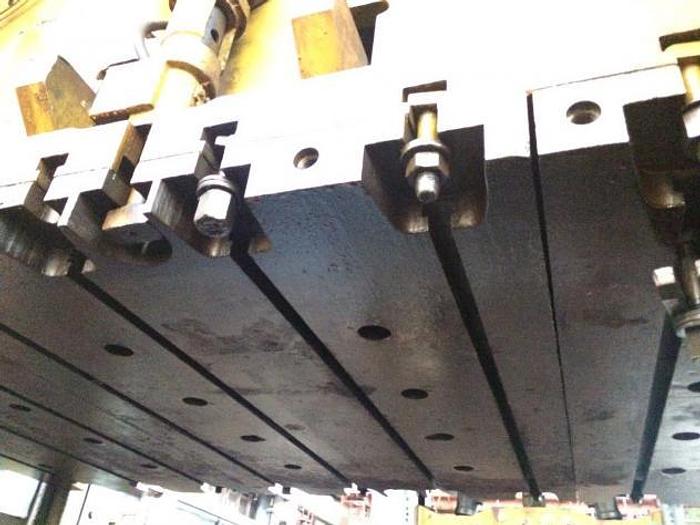

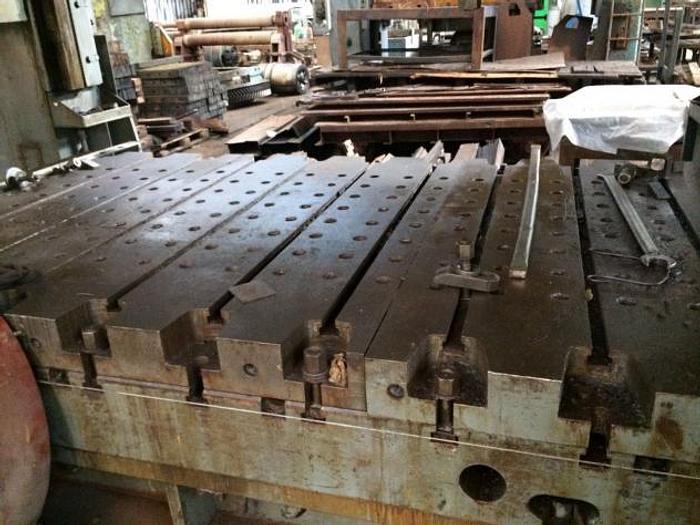

(side-front moving table) Nominal force: 1000 ton Slide stroke: 400 mm Continuous slide strokes per 1 min: 20 Single slide strokes per 1 min: 16 Shut height: 1060 mm Slide adjustment: 320 mm Table dimensions: 3150x1800 mm Slide dim., front-back: 1700 mm Window H 1500 x W 1900 mm Hydro pneumatic cushion in table clamping force at P = 0.42 MPa (P = 4.2 kg / cm2), kN 2000 ejection force P = 0.45 MPa (P = 4.5 kg / cm2), kN 200 Main-drive electric motor power: 132 kW DIMENSIONS: 5150x4700x11400 H floor7830 mm WEIGHT:193 ton
