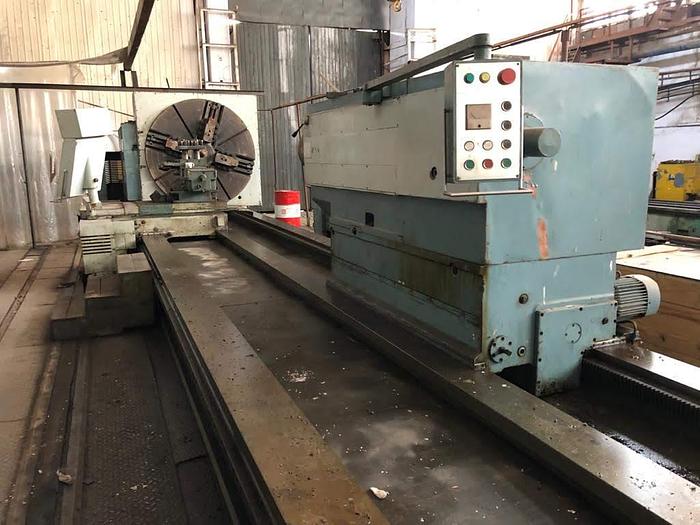

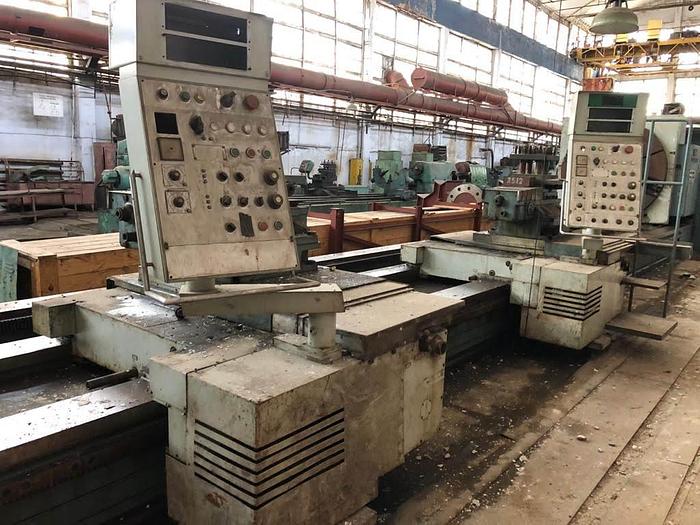

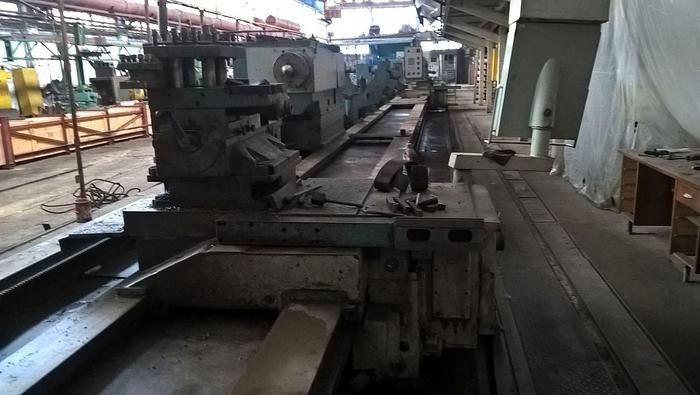

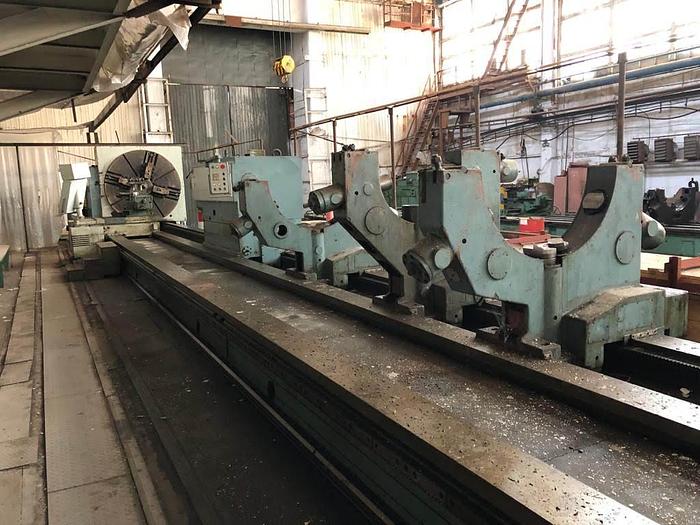

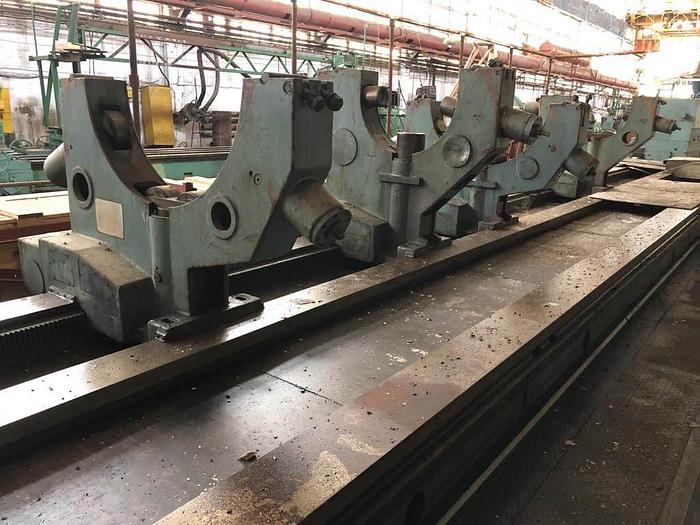

Heavy Duty Lathe Skoda SUT-200TD/35.000

Height of centers above the bed, mm 1000 Maximum diameter of the workpiece over the bed, mm 2020 Maximum diameter of the workpiece over the slide, mm 1600 Maximum mass of the part evenly spaced on the centers (without support), kg 63.000 Maximum permissible torque on the faceplate, Nm 160000 Maximum length of one part (when removing the right tailstock), mm 35.000 The maximum length of one part (with the left tailstock left on the frame), mm 32.500 The maximum length of a part with simultaneous processing of two parts, mm 16000 Machine weight, kg 153800 3. Machine dimensions in plan: Dimensions of the machine in the plan without electrical cabinets and hydroelectric units, mm 3800x45000 Machine dimensions in plan with electrical cabinets and hydraulic units, mm 13000x50000
