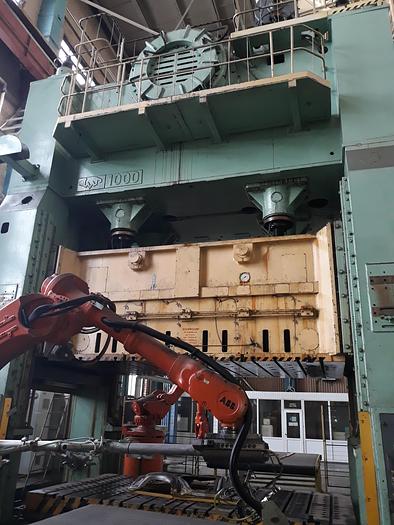

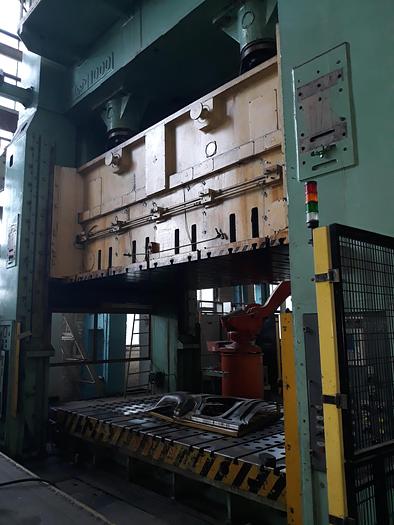

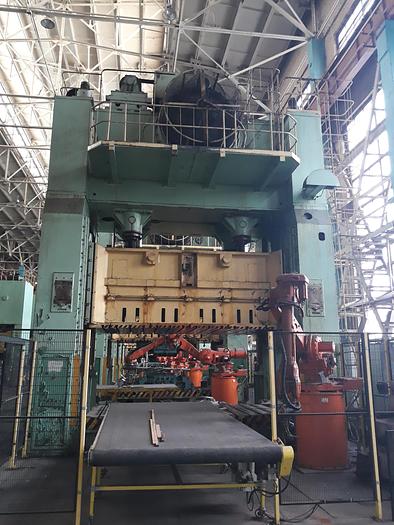

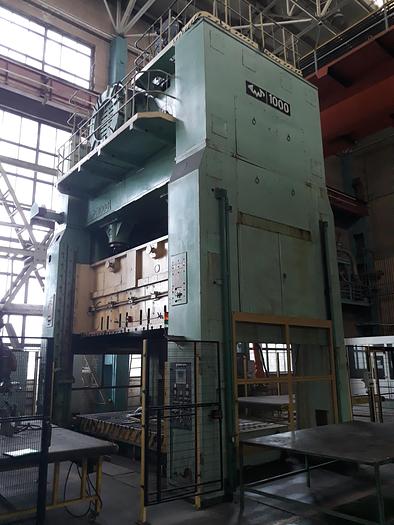

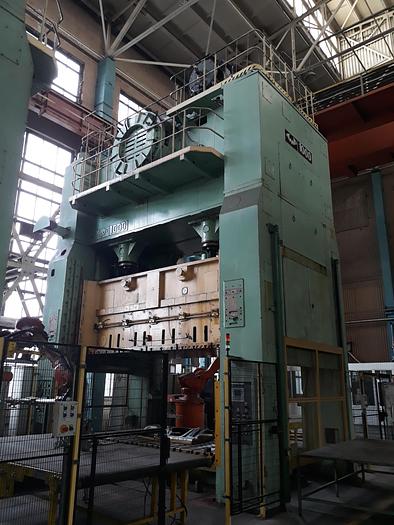

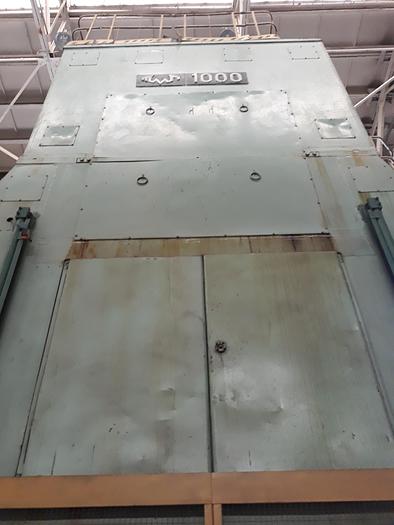

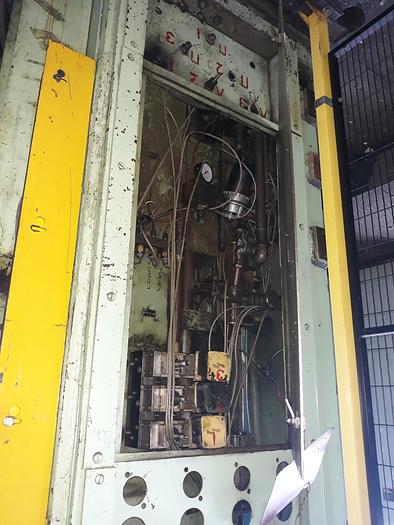

1985 TMP K4040, 1000T Closed four-crank sheet stamping press
or
Call +44 20 3287 0537
Specifications

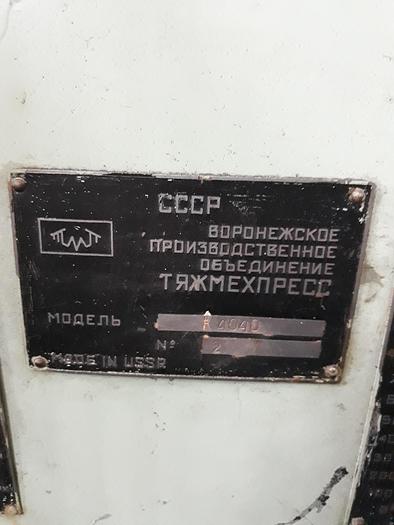

| Manufacturer | TMP |
| Model | K4040, 1000T |
| Year | 1985 |
| Stock Number | 164269663 |
Description
Nominal force, tf 1000
The slider does not reach BDC, mm 12.5
Slider stroke, mm 600
Frequency of continuous strokes, min-1 12...18
Highest frequency of single strokes, min-1 9...13
Closed height, mm 1500
Adjustment of closed height, mm 400

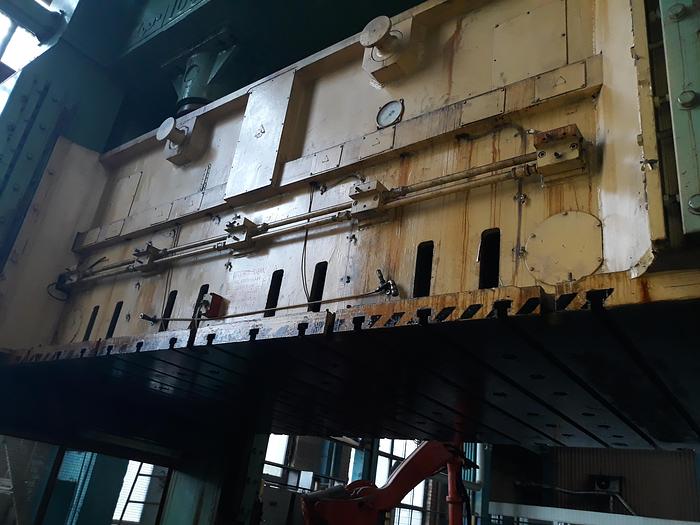

Slider dimensions, mm
from left to right 4500front to back 2500

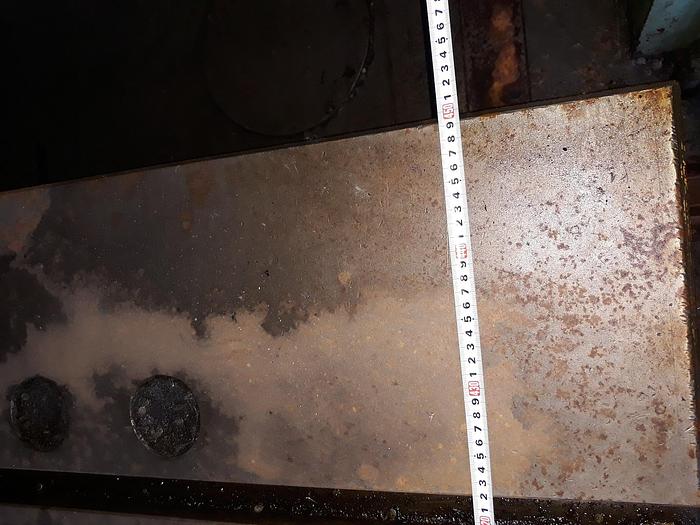

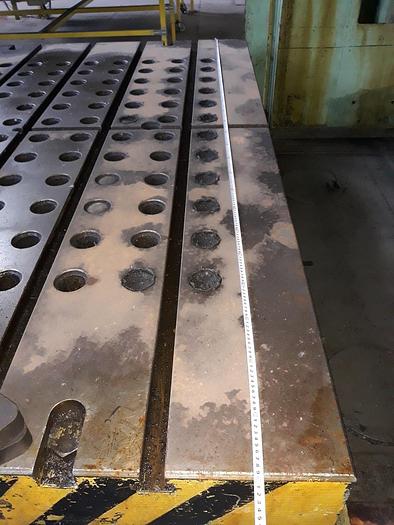

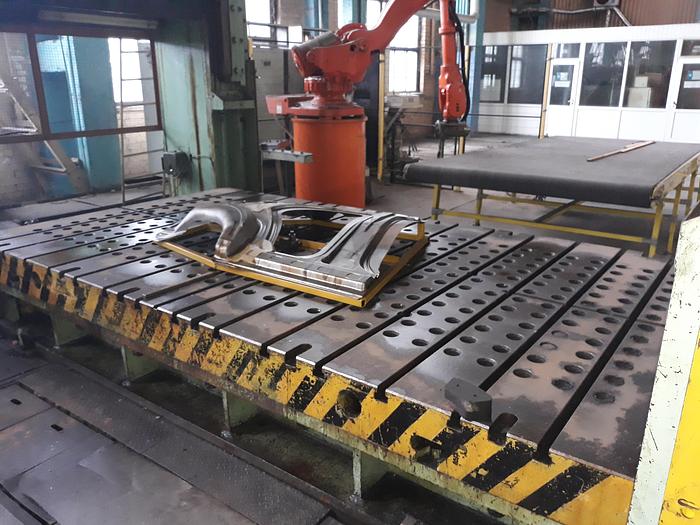

Dimensions of the die plate, mm
from left to right 4500front to back 2500
Main drive electric motor power, kW 200
Overall dimensions, mm
from left to right 6745
front to back 5400
height above floor level 9360
Weight kg 320000
