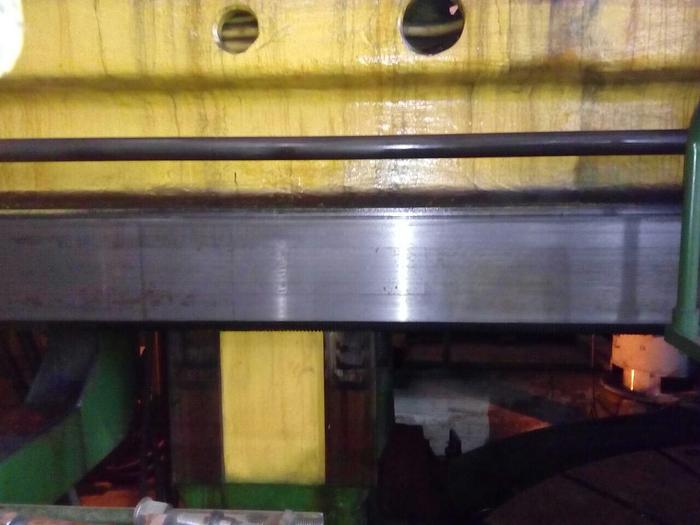

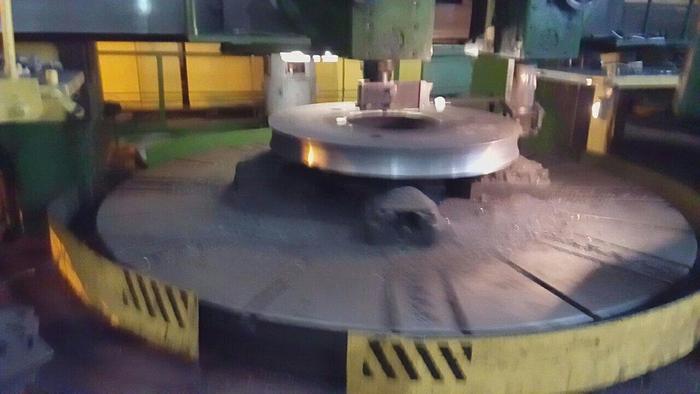

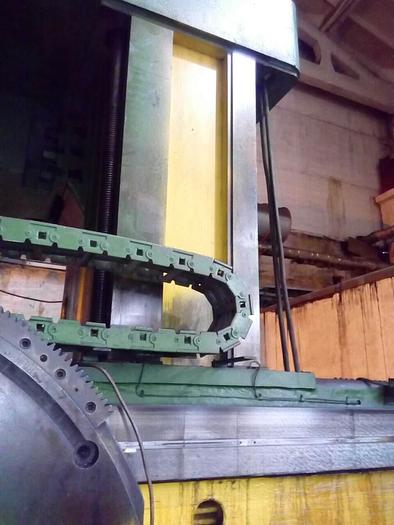

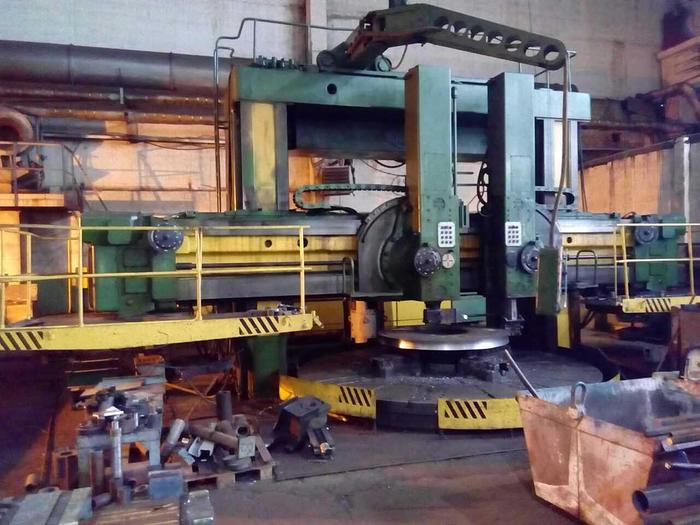

1975 KOLOMNA 1540 (D4000x2000) Vertical turning lathe
Sold
Specifications
| Manufacturer | KOLOMNA |
| Model | 1540 (D4000x2000) |
| Year | 1975 |
| Stock Number | 147398378 |
| Workpiece weight, kg | 63000 |
Description
Workpiece max. diameter, mm 4000
Workpiece max. height, mm 2000
Faceplate diameter, mm 4000
Vertical ram stroke of vertical slide, mm 1250
Horizontal stroke of vertical slides, mm 2350
Corner of supports turn, deg. -15 +40
Workpiece weight, kg 63000
Cutting force on slides, kN 100
Faceplate speed range, rpm 0,52-48,7
Main drive, kW 63
Machine weight, kg 105000
