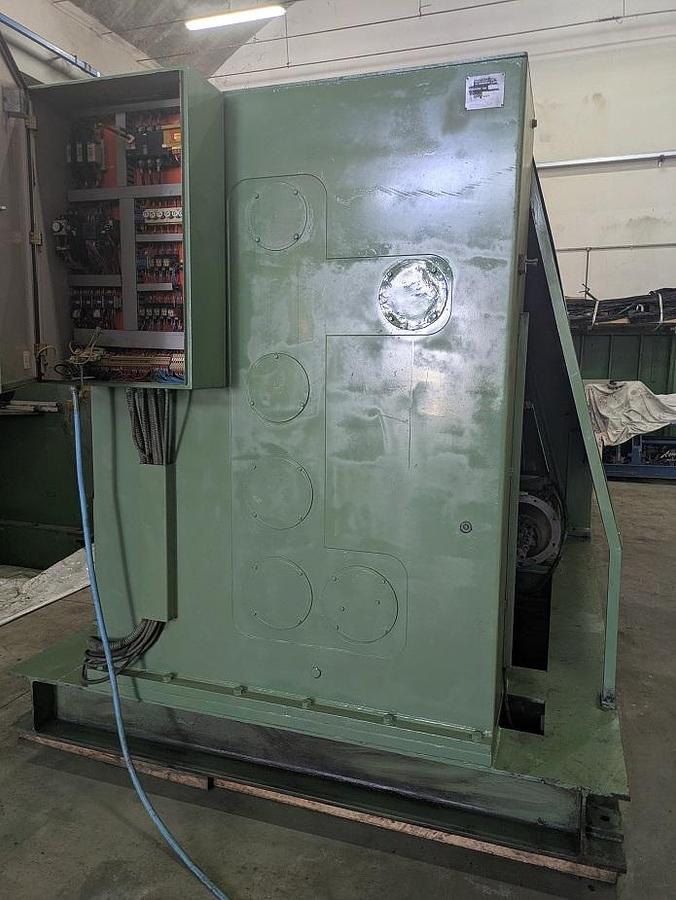

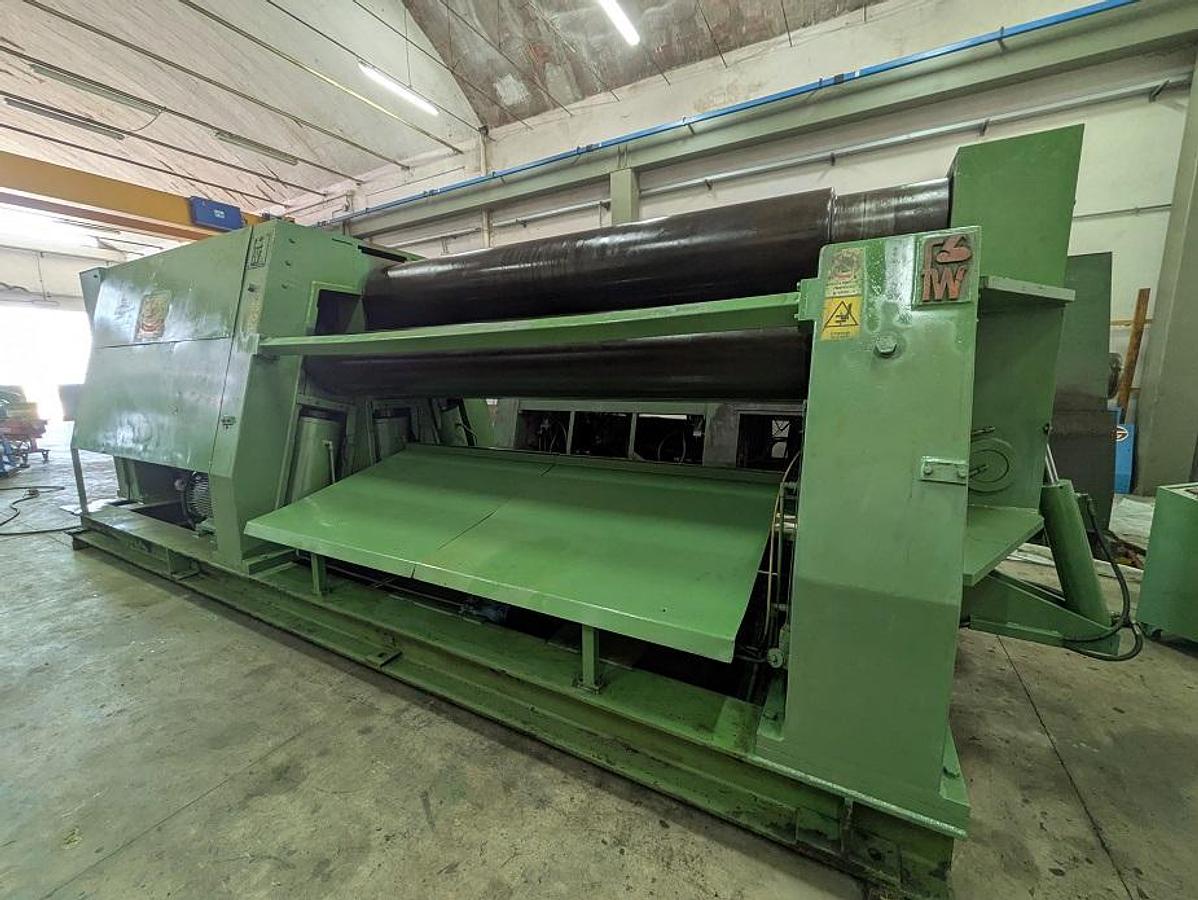

1990 FACCIN 4HCI3-35/30 (3000 X 40 MM) PLATE BENDING MACHINE FACCIN - 4 ROLL

PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 3000 X 40 MM - MODEL 4HCI3-35/30 YEAR 1990 /2025

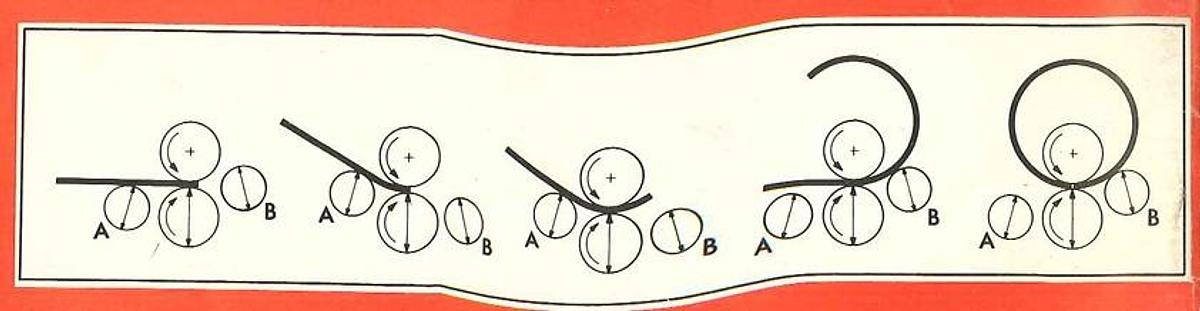

PLATE BENDING ROLL LINEAR GUIDEWAYS DOUBLE PINCH PRE-BENDING

Machine in good working condition

Bending capacity

-Plate width : 3000 mm

-Rolling plate thickness 40 mm

- Prebend thickness 35 mm

Rolls dimensions: -Useful length 3050 mm

-central rolls upper/lower D 470 mm

-side rolls left/right D 420 mm

• Hardening of the 4 rolls high strength surface

• 3 rolls driven powered with gear unit with hydraulic motor

• Conical bending attachment side rolls tiltable to form cones, contrast pad roller type.

• Opening front hydraulic drop-end to unload the E5531468 closed E5531468 shell.

• Variable speed working roll bending rotation hydraulic speed fast/slow.

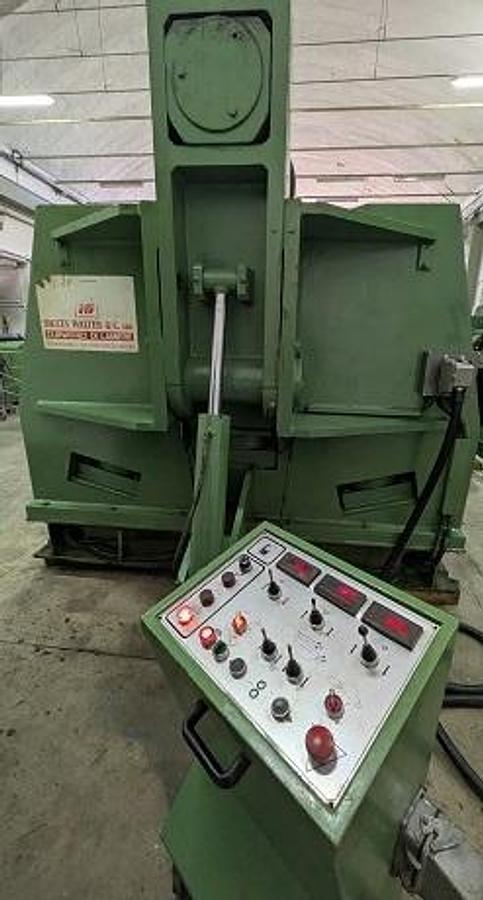

• Console electric on wheels with centralized commands joysticks and 3 digital readout.

• Digital readouts of the rolls position bending and pre-bending repeatability.

• Hydraulic tank capacity oil 350 liters – power electric 37 Kw voltage 380 /50

• Dimension 7700 x2410 x H 2470 mm - weight 43000kgs
