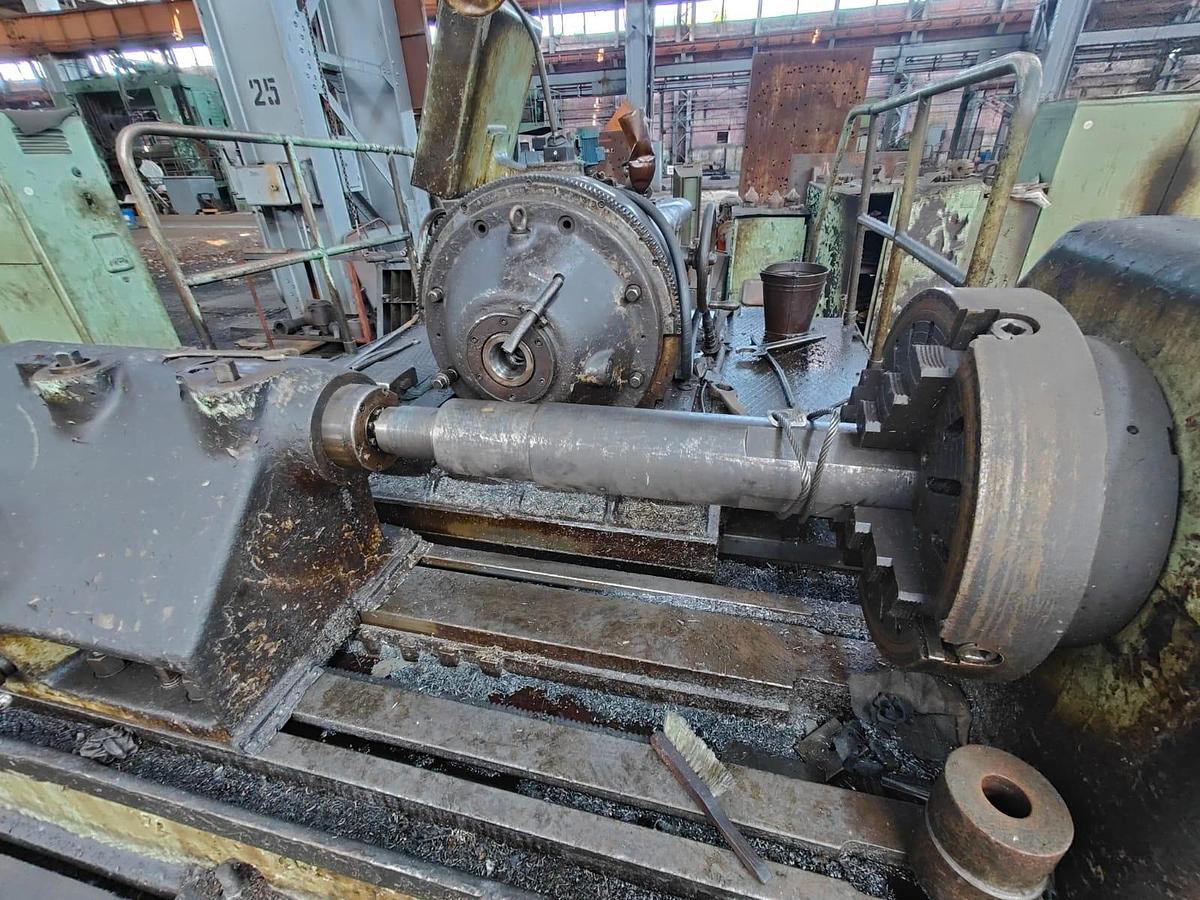

1980 STANKO 5V370 (D500x2500,M20) Horizontal semi-automatic gear hobbing machine
Specifications
| Manufacturer | STANKO |
| Model | 5V370 (D500x2500,M20) |
| Year | 1980 |
| Stock Number | 167207871 |
Description
s used for hobbing cylindrical wheels with worm and disc milling cutters. It allows you to perform gear hobbing works - to produce cylindrical spur and helical gears, cutting teeth by radial plunge with the largest modulus - 20-25 mm. and the diameter of the processed gear wheel - 2500-2800 mm.
Specifications:
Model 5V370
Machine Type Gear Hobbing

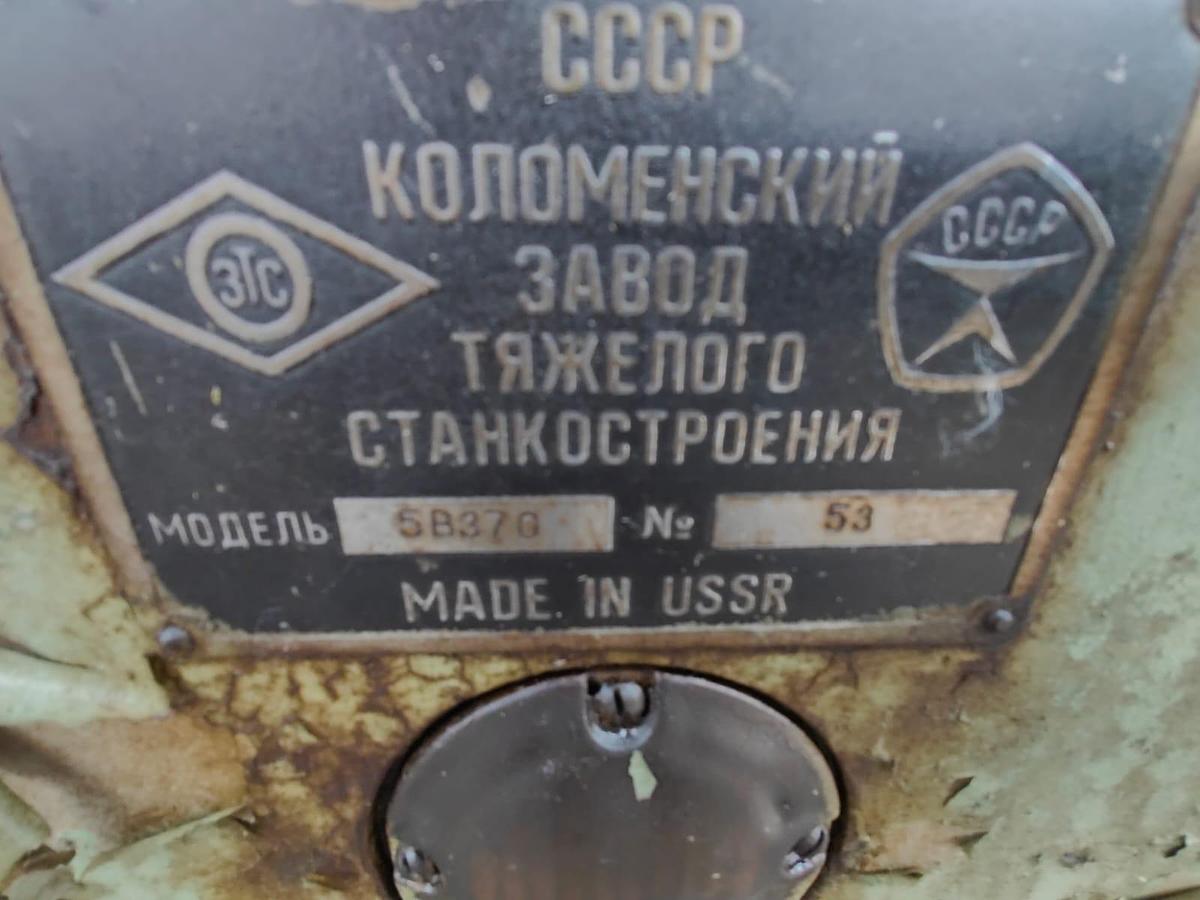

Producer Kolomna Heavy Machine Tool Plant (KZTS)
Main Motion Motor Power 19 kW
Platter diameter 500 mm.
Machine weight with optional equipment 27,000 kg.
Dimensions of the machine 7,600 x 2,890 x 2,170 (mm.)
Parameters of manufactured parts:
Maximum outer diameter of the workpiece 2,500 mm.
Minimum outer diameter of the workpiece 50 mm.
Maximum length of tooth milling 500 mm.
Maximum tooth angle of the wheels to be cut 45
Maximum weight of manufactured parts 4,000 kg.
Maximum tooth modulus of manufactured wheels 20 mm.
Maximum tooth modulus cut with a disc milling cutter 25 mm.
