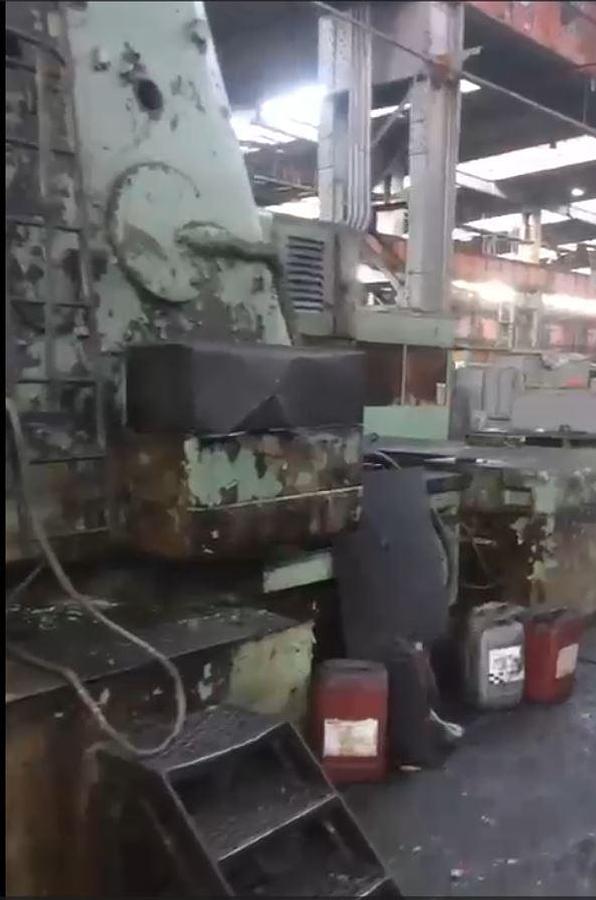

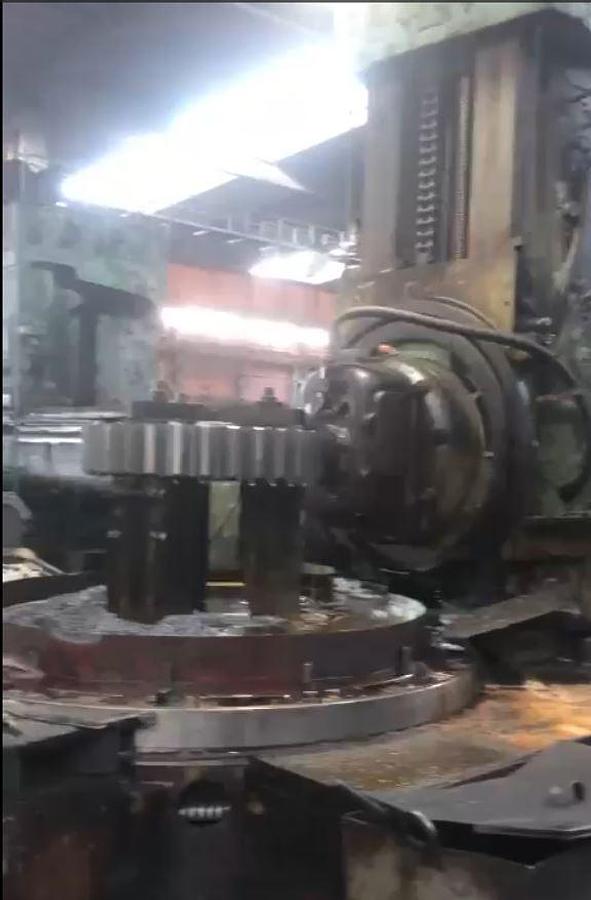

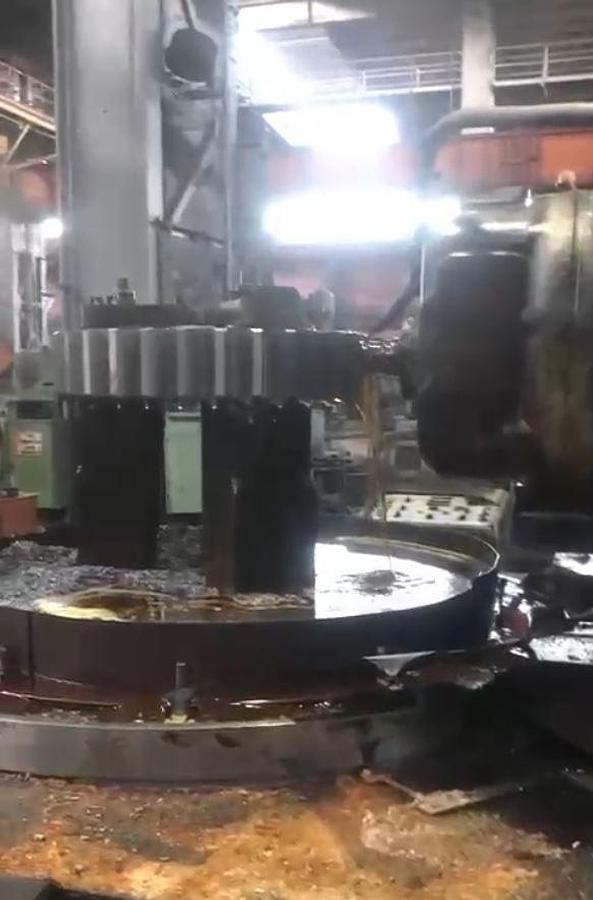

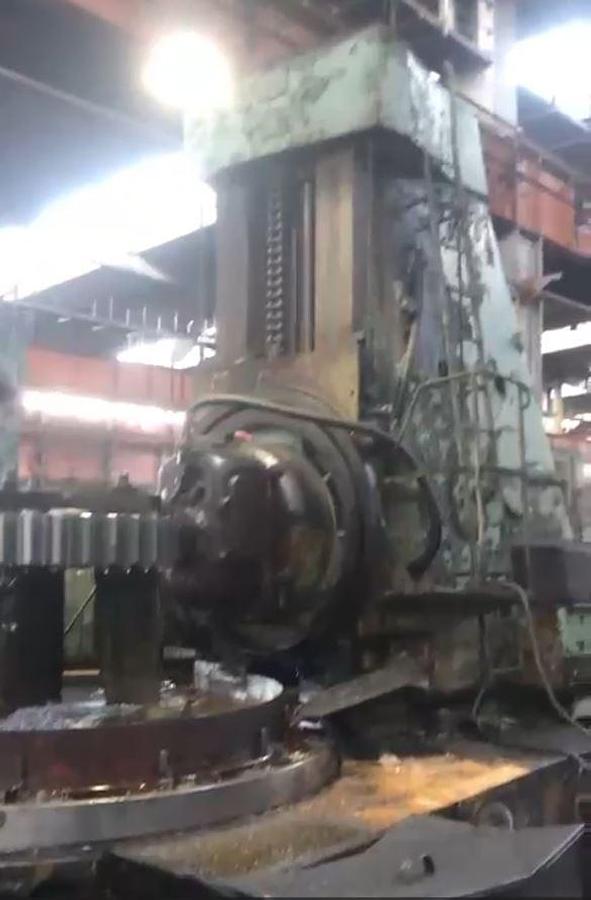

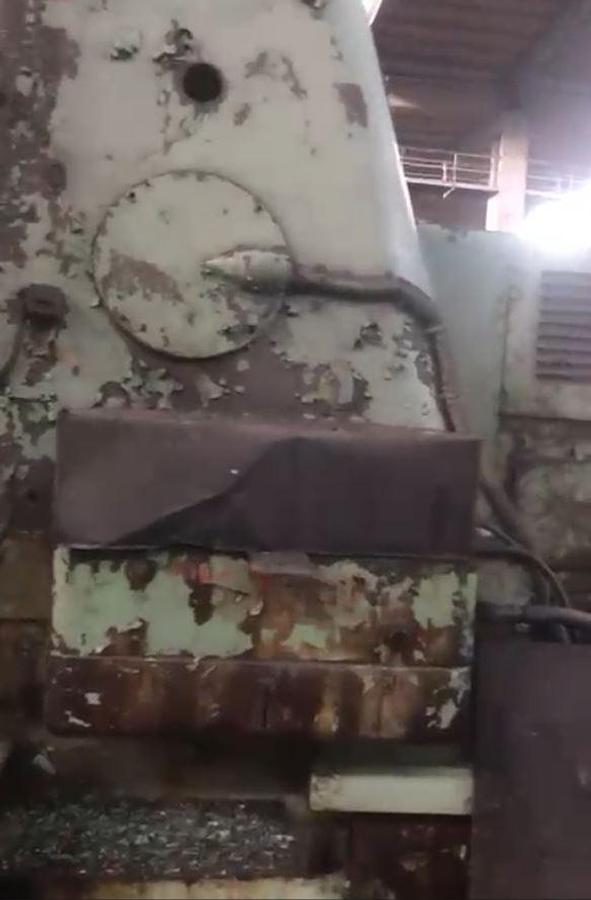

WMW ZFWZ 3150/30I (D2400xM30) Gear hobbing machine

REPARATION

Max. diameter without the holder: 3150 mm

Max. diameter with the holder: 1600 mm

Min. diameter: 500 mm

Min. width of a tooth: 1000 mm module 30

Max. corner of an inclination of a tooth: 45 degree

Max. rearranging of a tangential pusher: 500 mm

MILL

Max. diameter: 350 mm

Max. length: 440 mm

TIGHTENING A TABLE

Diameter: 2400 mm

Aperture: 500 mm

Depth of an aperture: 1100 mm

The greatest loading: 30 ton

Vertical distance between the middle: 700-1900 mm

SPEEDS

Hob turning speeds: 12,5 - 71 U/min

Feeds – axial: 0-16 mm/U

Feeds - radial: 0-7, 1 mm/U

Feeds - tangential: 0-8,0 mm/U

MILLS AND A SURFACE OF A TABLE

Horizontal distance between the middle: 300-1800 mm

SET

Control system: 6000 kg

Table: 10000 kg

Bed: 8000 kg

Bottom part of bed: 9000 kg

The main rack with ladder: 15000 kg

The back rack: 10000 kg

Pusher of rack: 6000 kg

Box with change gears: 1300 kg

Additional details: 4000 kg

Box with equipment for installation of preparation for the machine: 1500 kg

Tanks: 2000 kg

Electricity box: 900 kg

Hidrostation: 500 kg

Electrical specifications: 380 V, 220V, 50 Hz, 3 MP

Main motor: 70 kW

Dimensions: 6785x5400x4820 mm

Weight: 65 tons
