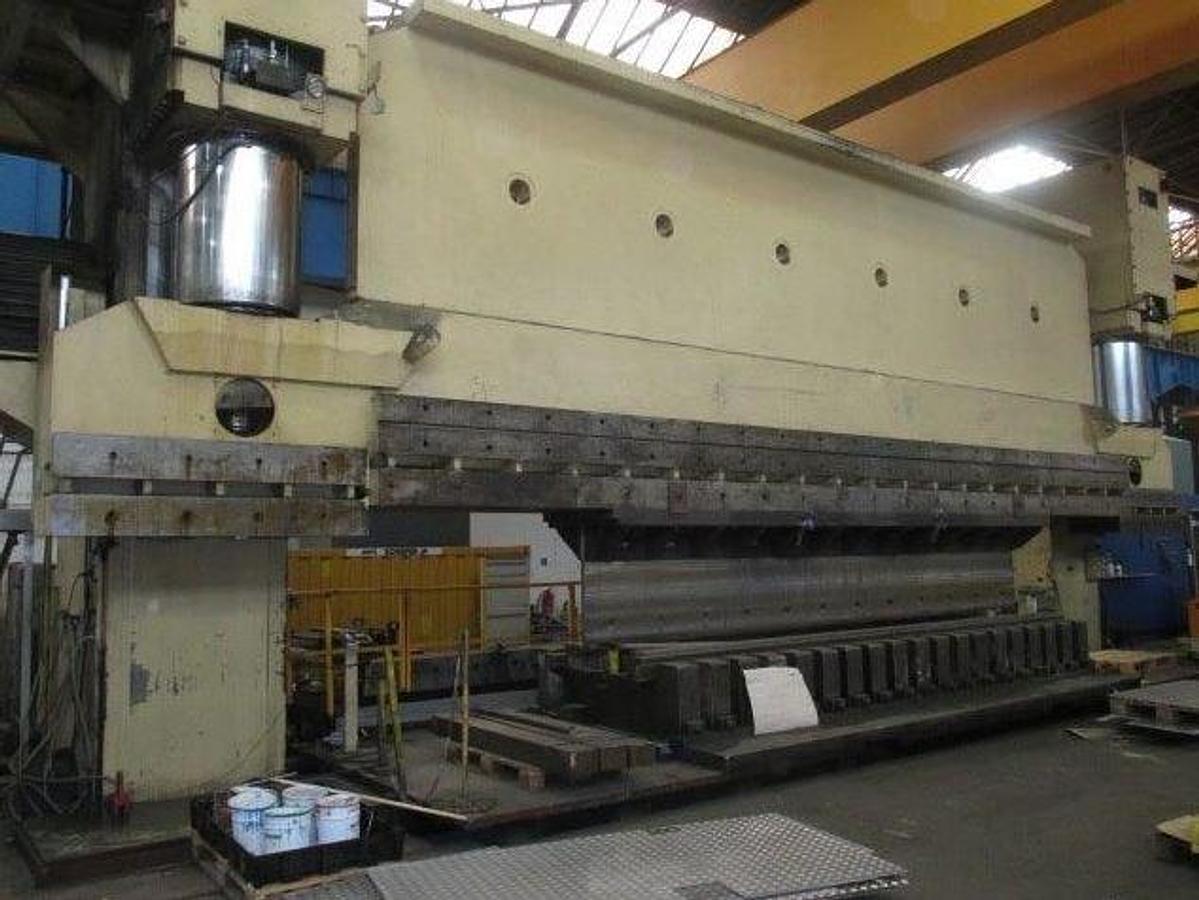

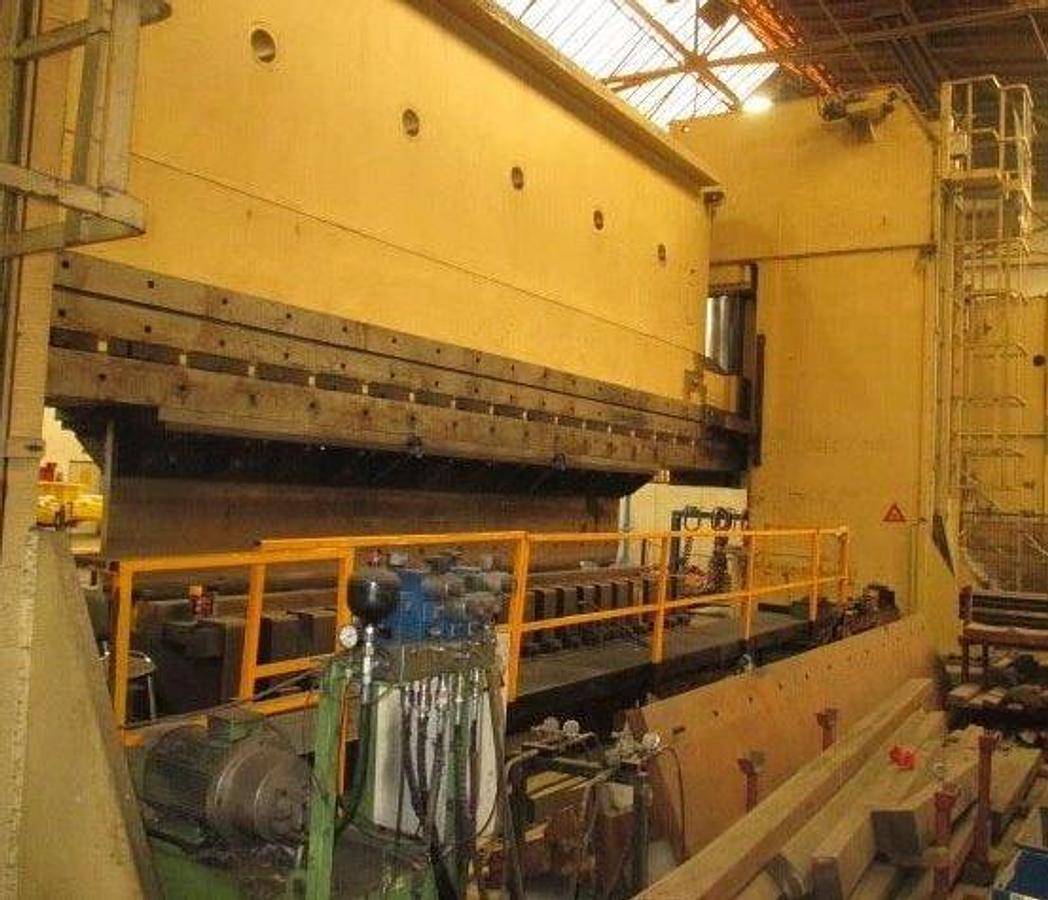

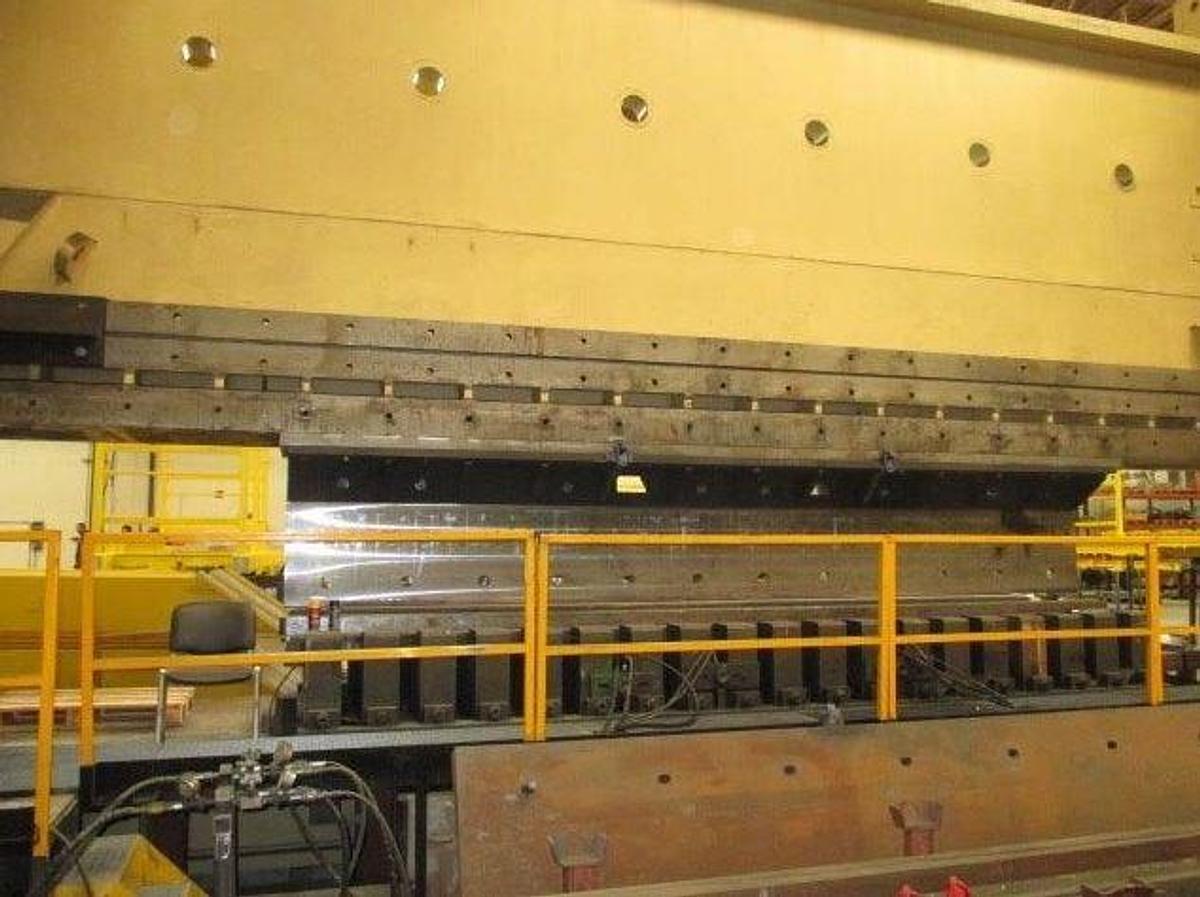

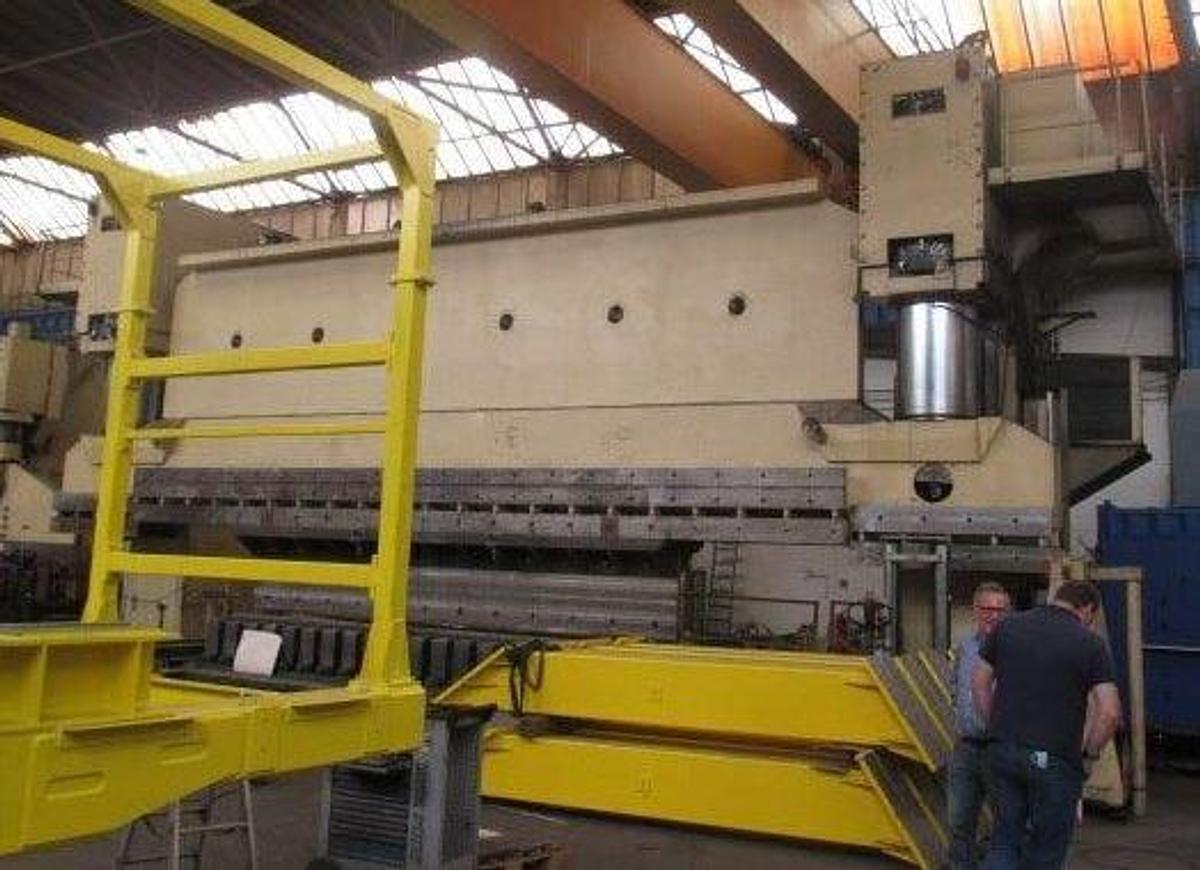

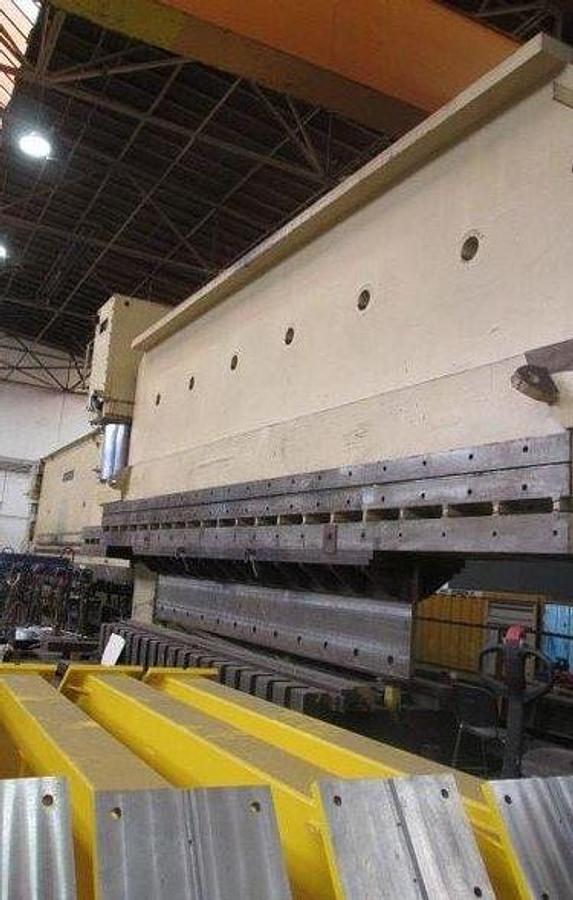

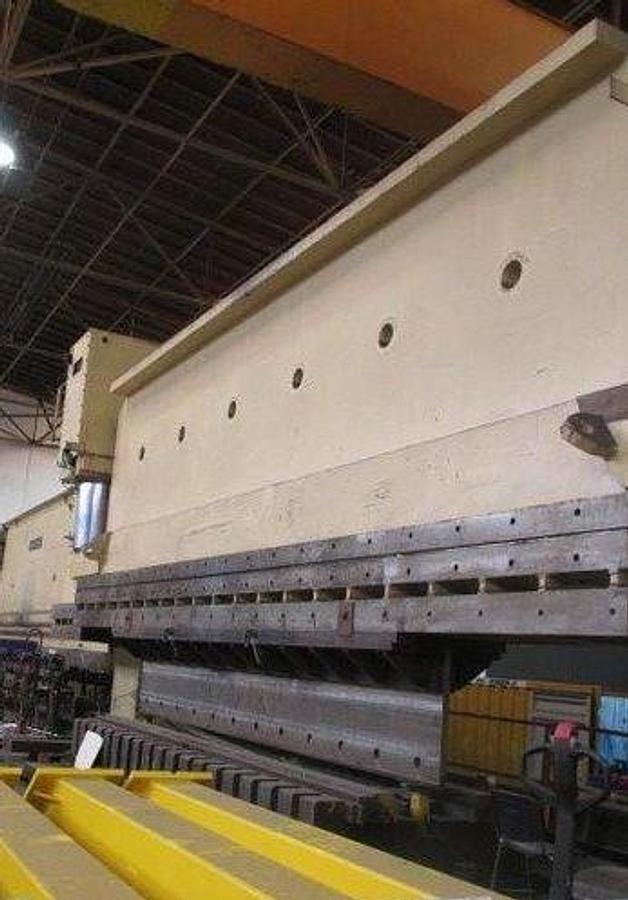

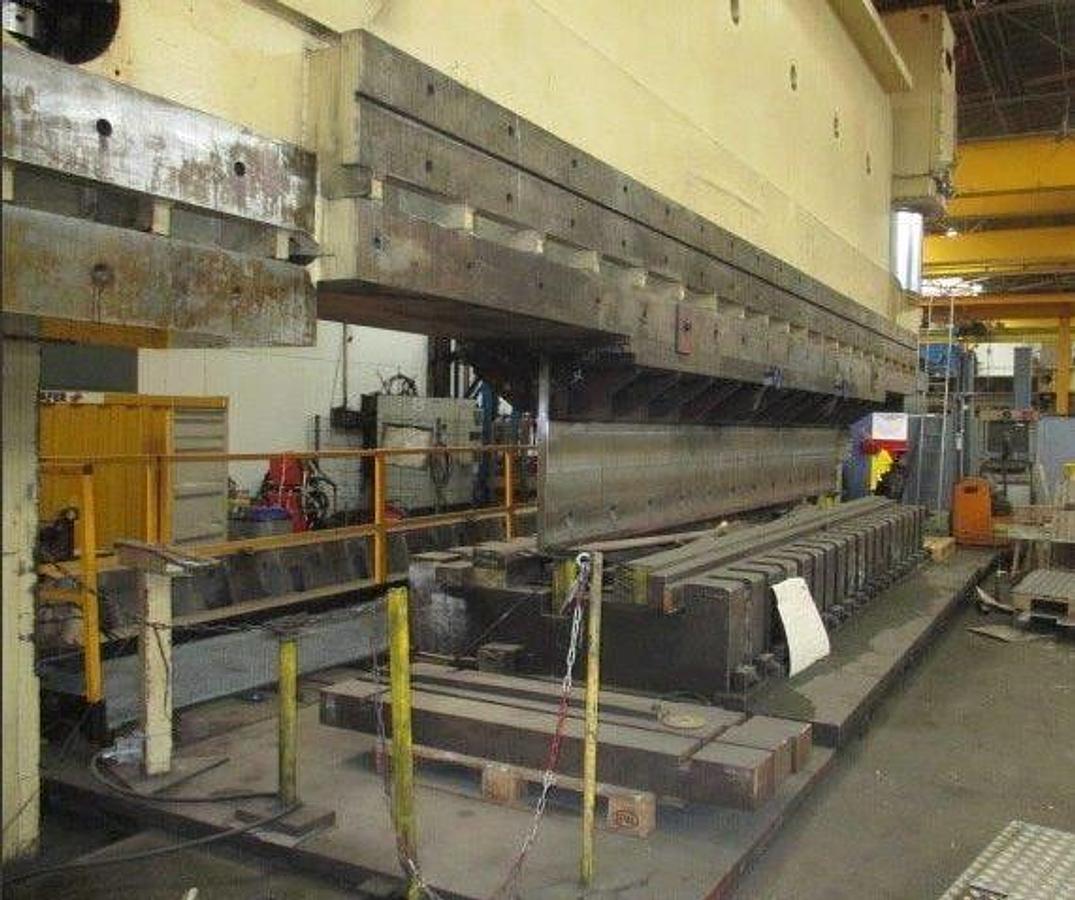

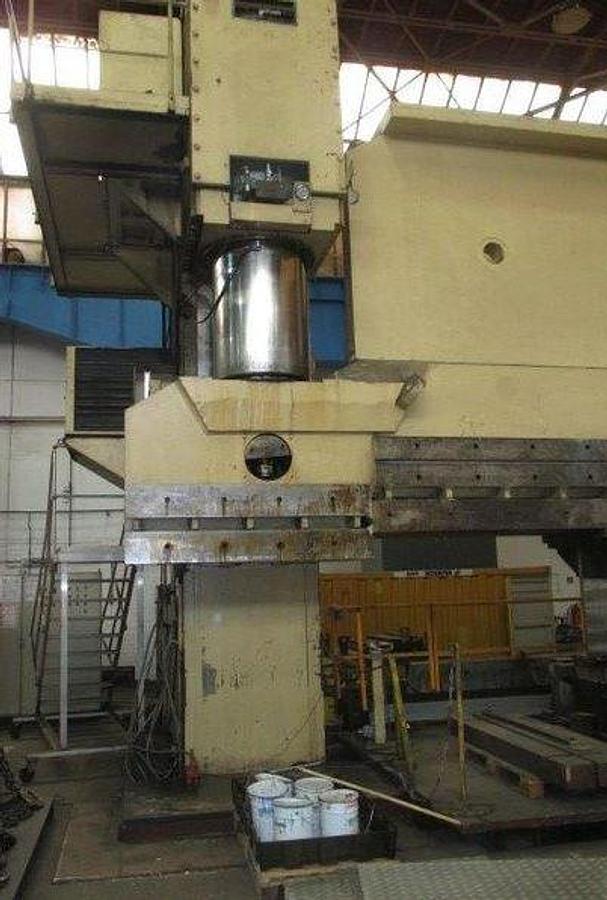

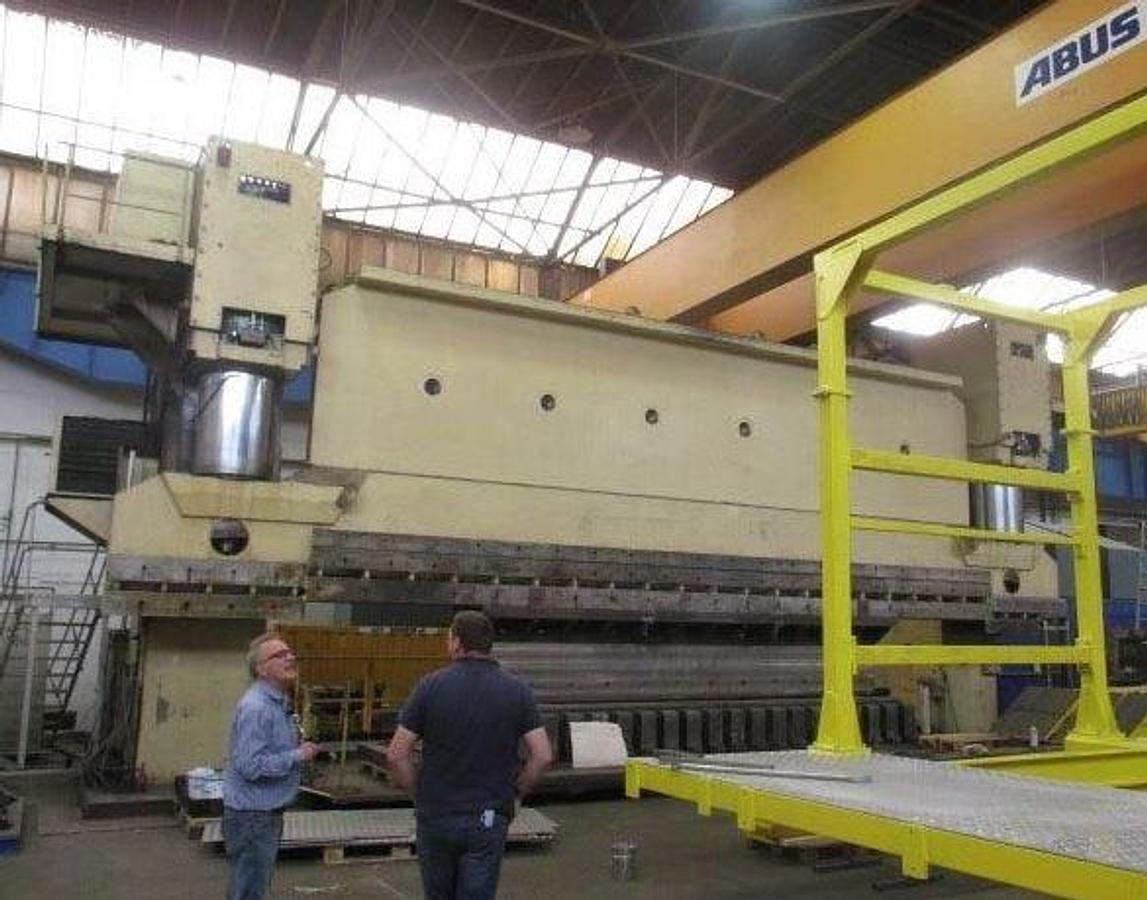

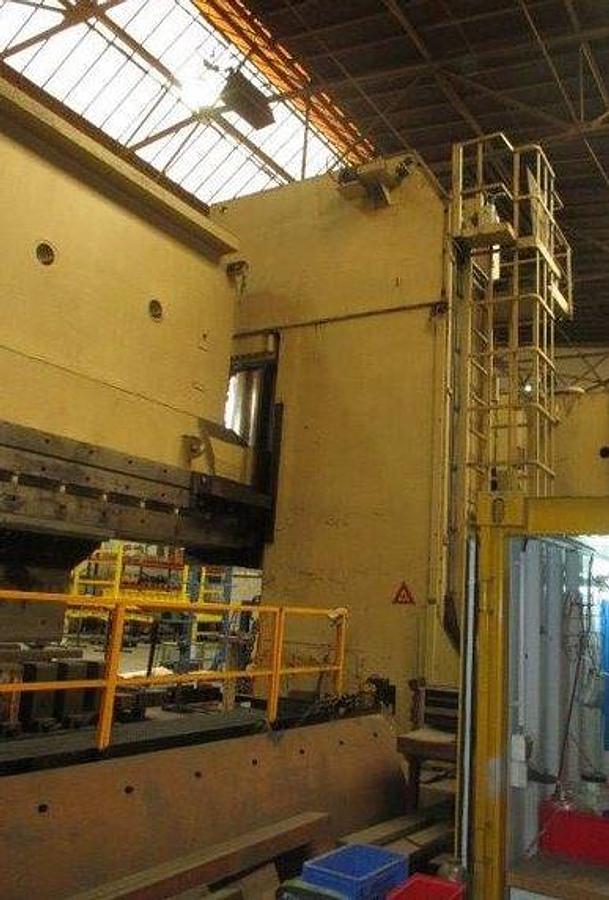

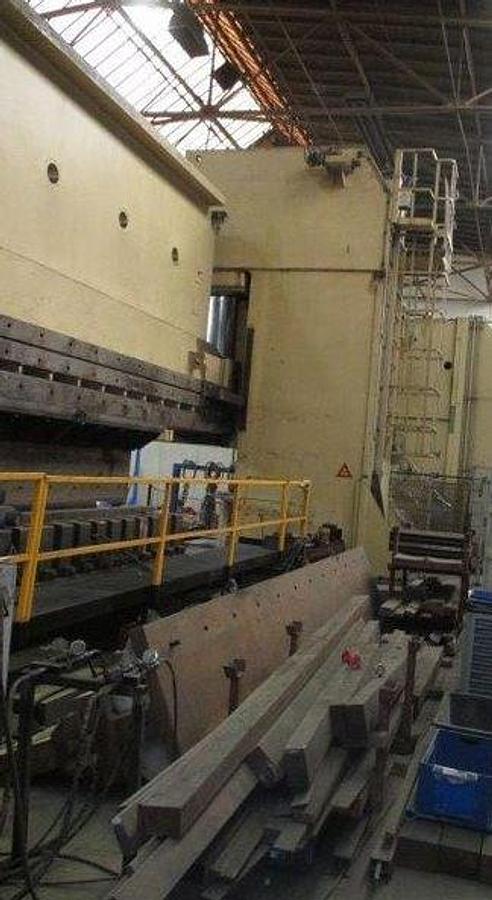

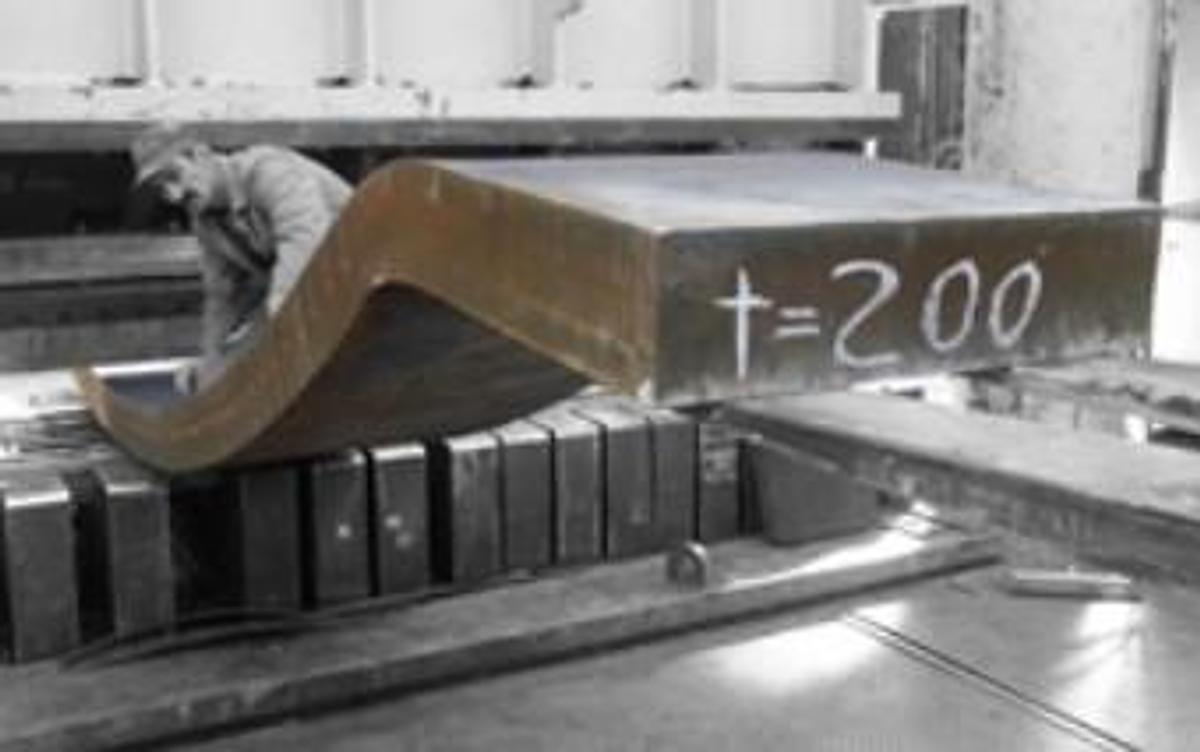

1990 ALIKO (Finland) 12800 x 3000t hydr. press brake

Working length: 14000 mm

Distance between bottom: 10500 mm

press power: 3000 t

inlet depth: 700 mm

widths of table: 1000 mm

stroke: 1300 mm

distance table – pressing bars : 1800 mm

control: CYBELEC CNC 7000 with graphic

controlled axes: Y1, Y2, X1, X2

dimension (length x withs x height): ca. 14600 x 4200 x 7200

depth of fundamentation: 3400 mm

depth of fundamentation for frame: 1700 mm

weight: ca. 430-Tonn

Dimensions of the individual components for transport:

Table: 14020 x 4270 x 910 mm, weight approx. 125 tons;

Upper part: 15240 x 4060 x 910 mm, weight approx. 120 tons;

2 pcs. Side stands: 7620 x 3550 x 1530 mm, weight approx. 90 tons each 90 to each

Bottom tool: 15240 x 1220 x 1220 mm, weight approx. 40 tons

2 pcs. 40" containers for cylinder, electrical components and various attachments
