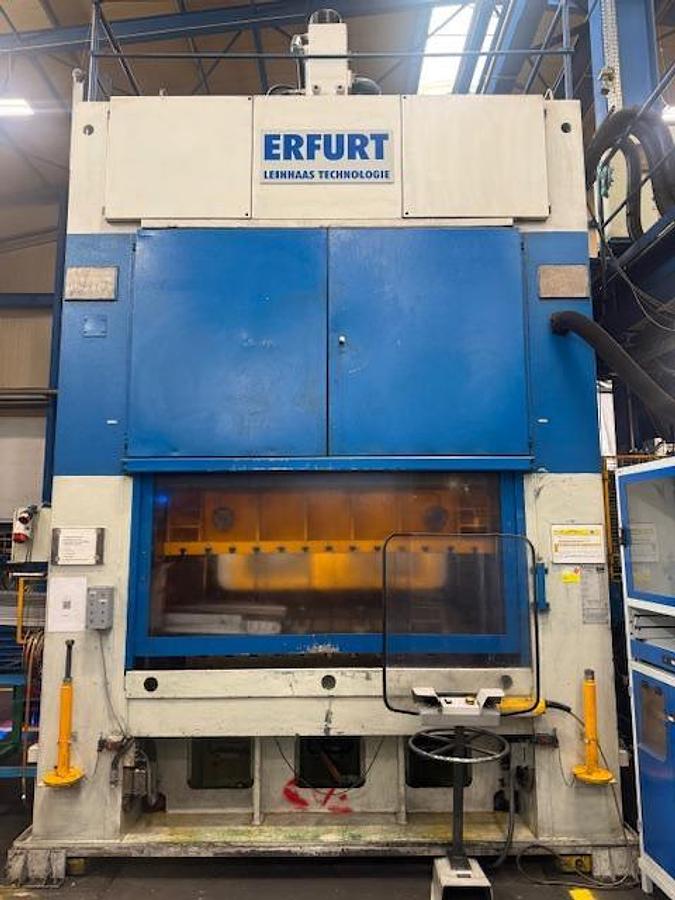

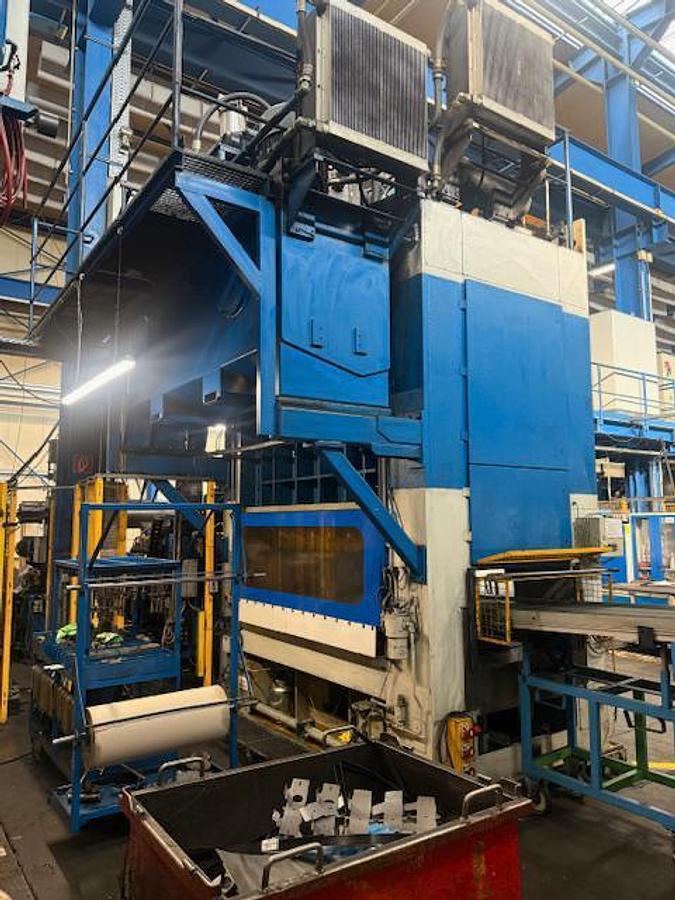

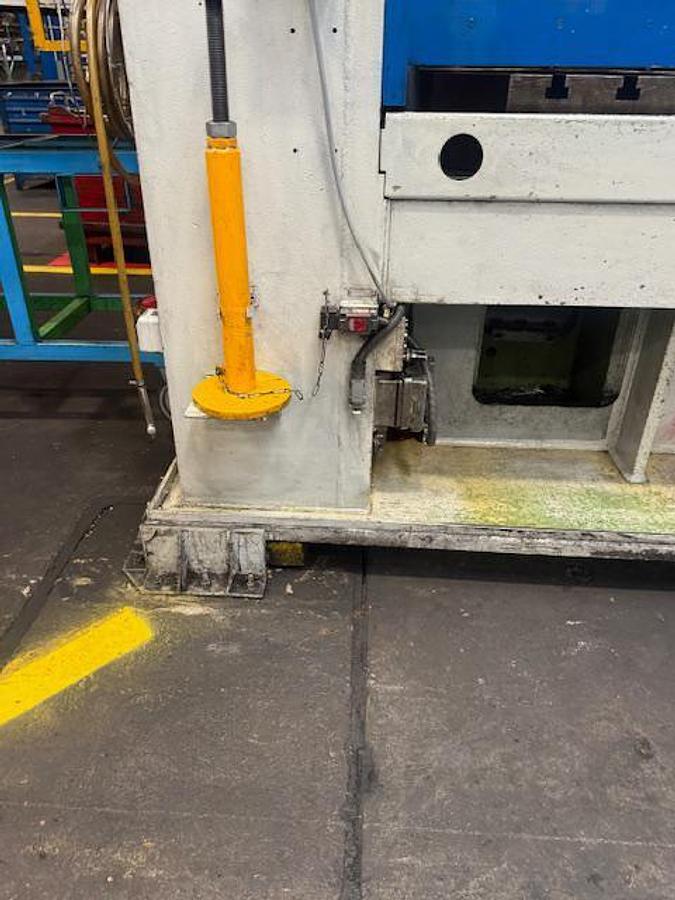

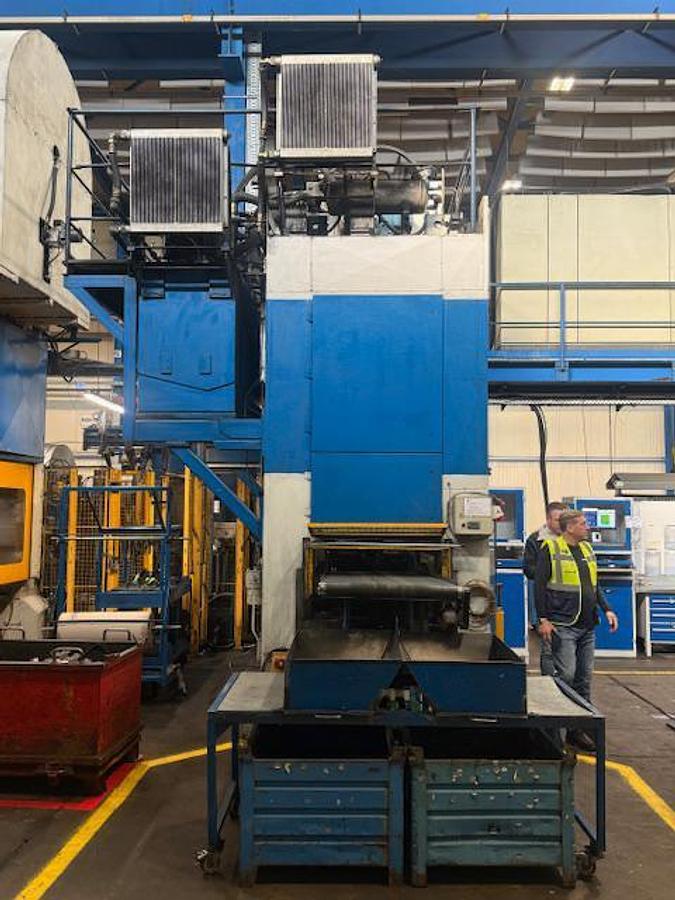

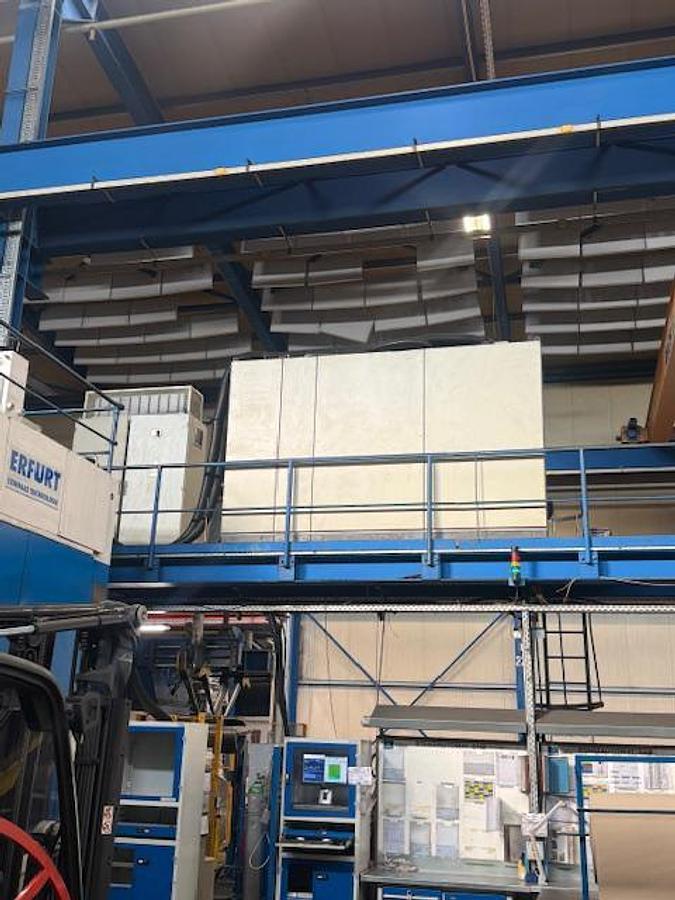

LEINHAAS ERFURT USTA 450/2000x1250 High-precision stamping press

Manufacturer Erfurt Pressen

Machine type Leinhaas Technology

Country of origin Germany (BRD)

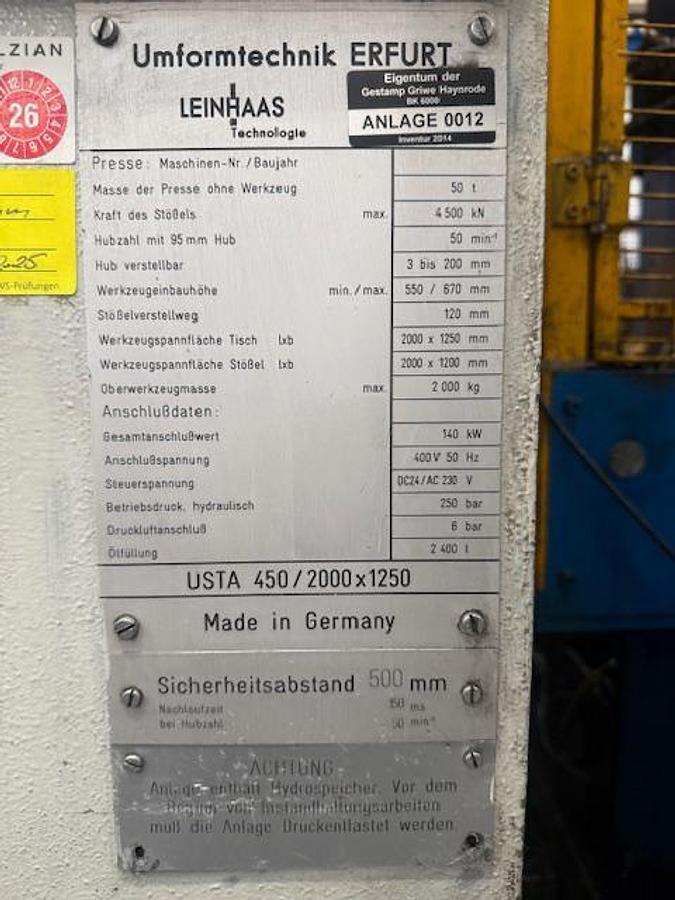

Machine data

Parameter Value Unit / Notes

Max. press force 4500 kN

Stroke rate (continuous) min. 15 strokes/min

Max. stroke rate (tool designed for) 75 strokes/min

Ram stroke 3 – 200 mm

Ram adjustment 120 mm

Installation height (min.) 600 mm

Max. installation height 670 mm

Dimensions of press table

Press table length 2000 mm

Press table width 1250 mm

T-slots (press table) DIN 650 – 28 H12

Number of T-slots (table) 11 pcs

Distance between T-slots 150 mm

Dimensions of press ram

Slide length 2000 mm

Slide width 1200 mm

T-slots (slide) DIN 650 – 22 H12

Number of T-slots (slide) 13 pcs

Distance between T-slots 150 mm

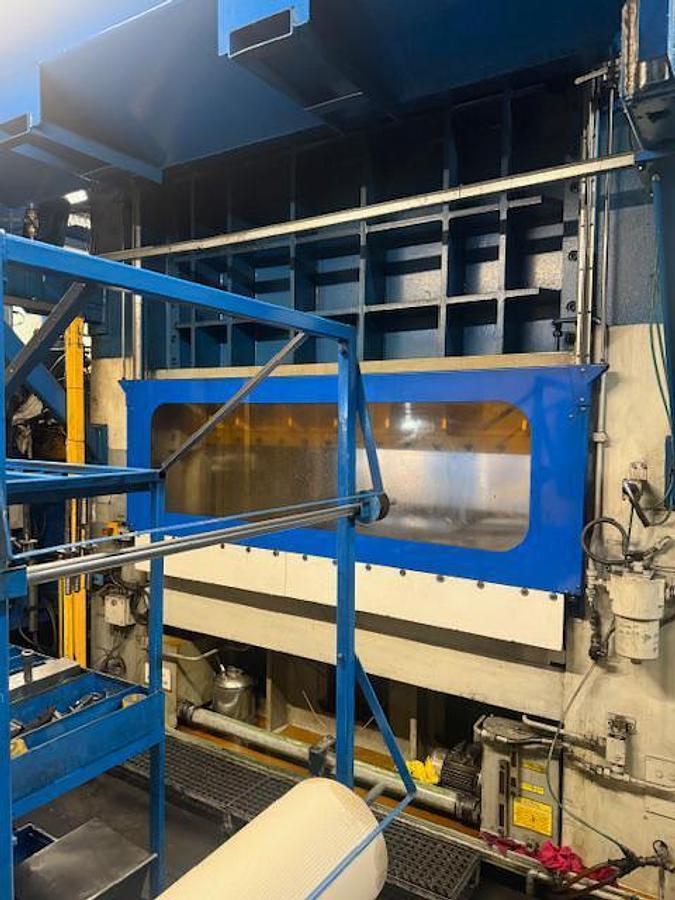

Press frame opening

Side opening 900 mm

Front opening 2200 mm

Tool clamping

Tool clamping height (upper tool) 80 mm

Tool clamping height (lower tool) 80 mm

Clamping slot width – upper tool 28.5 +0.2 mm

Clamping slot width – lower tool 28.5 +0.2 mm

Tool clamping – upper tool By clamping bolts

Tool clamping – lower tool By clamping bolts

Tool change system Not available

Tool centering Centering strips / locating bars

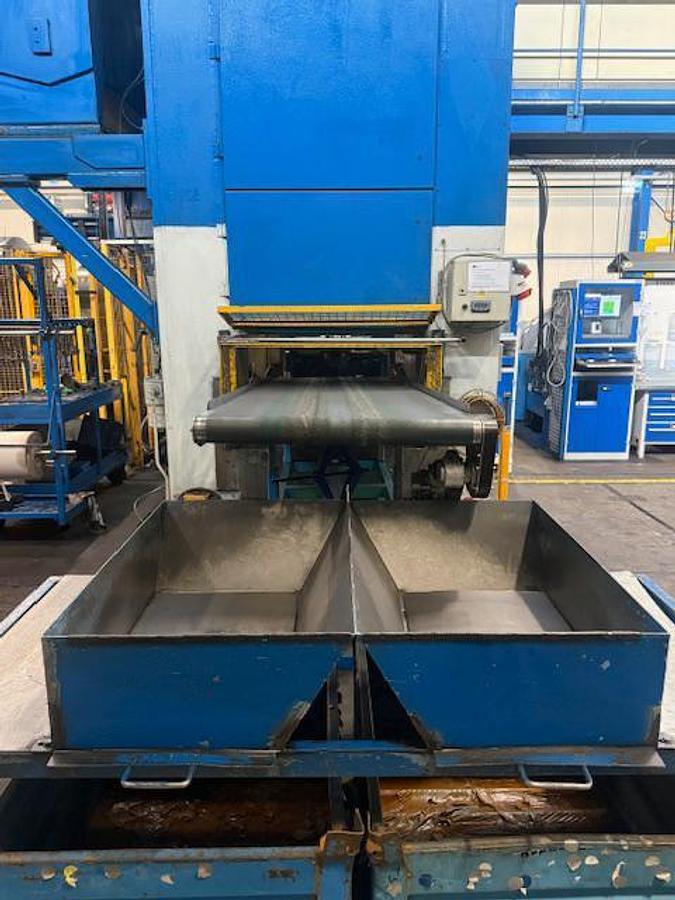

Scrap removal

Scrap length (max.) 50 mm

Scrap width (max.) 50 mm

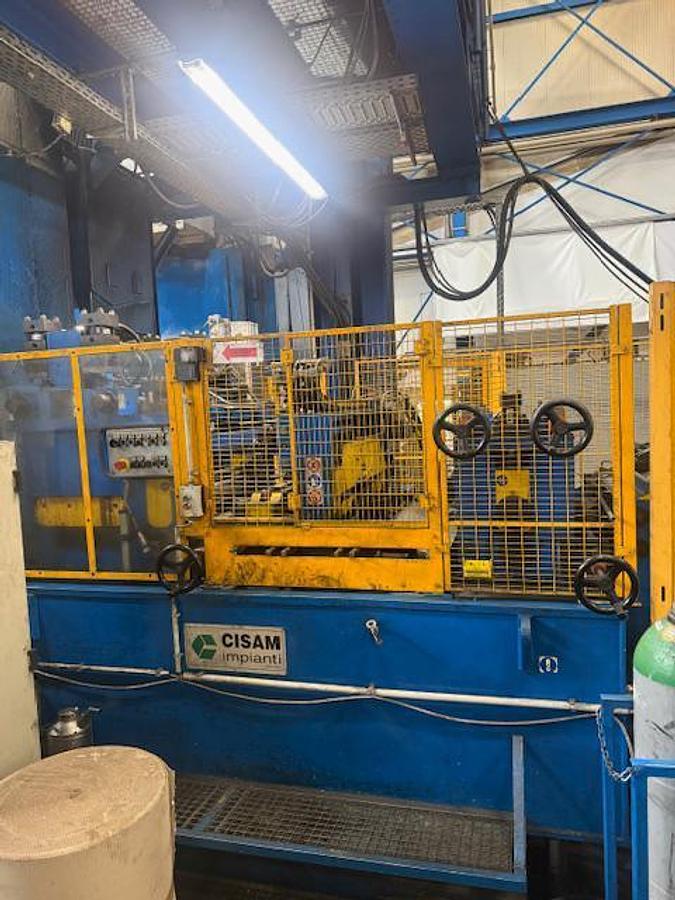

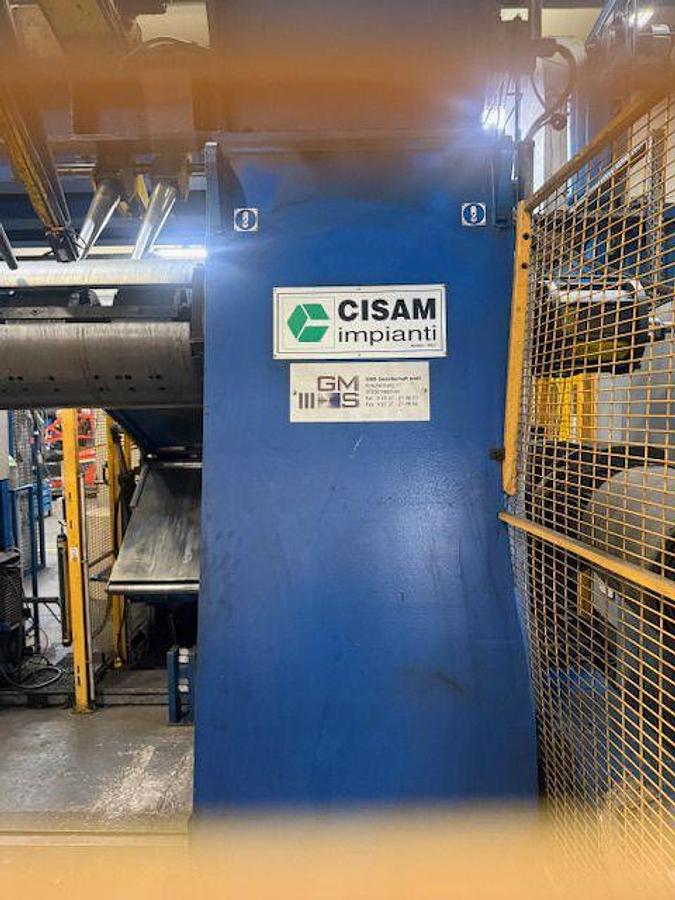

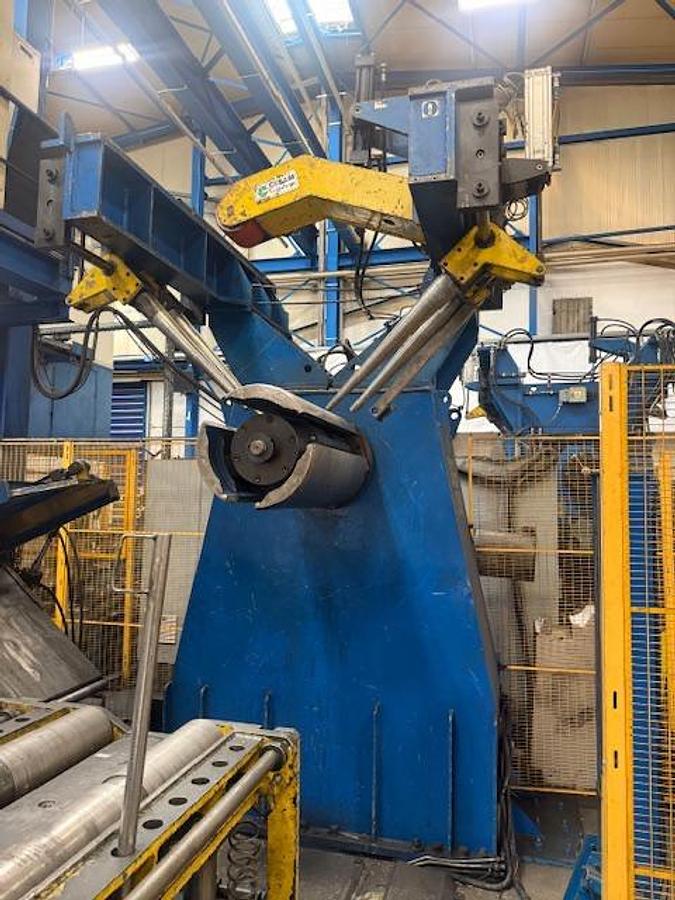

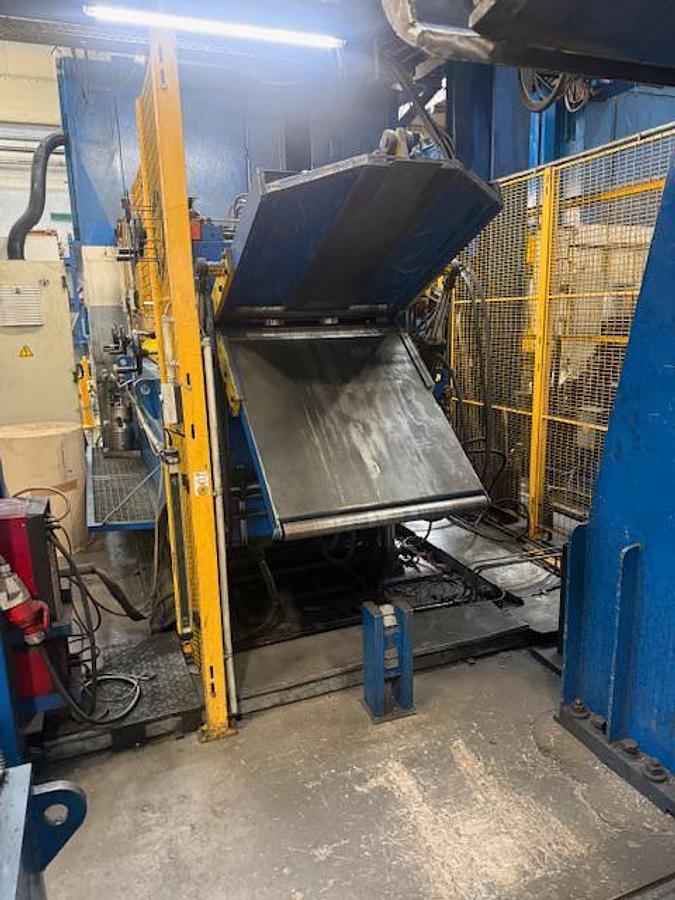

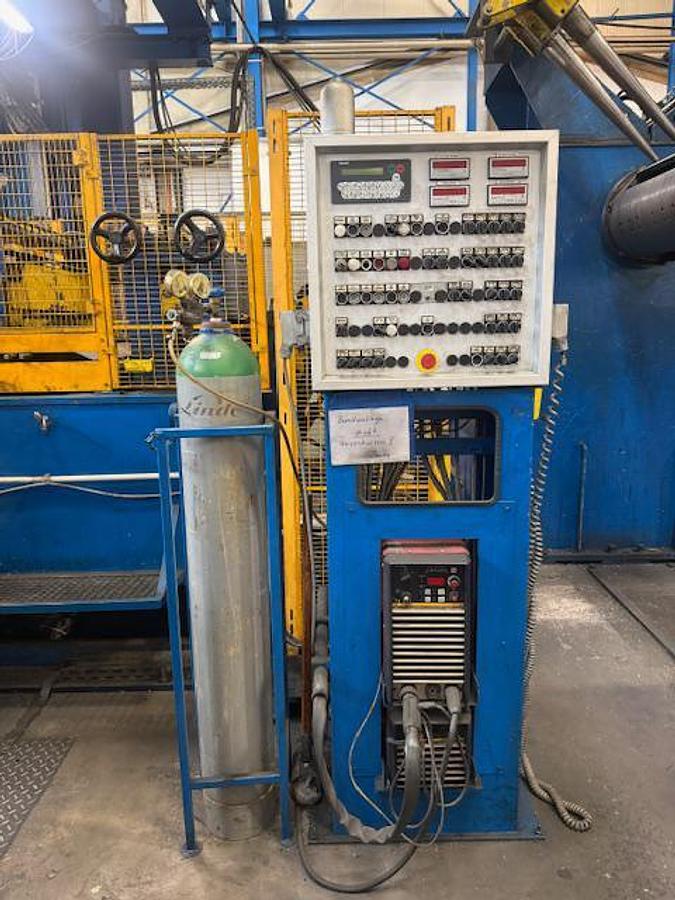

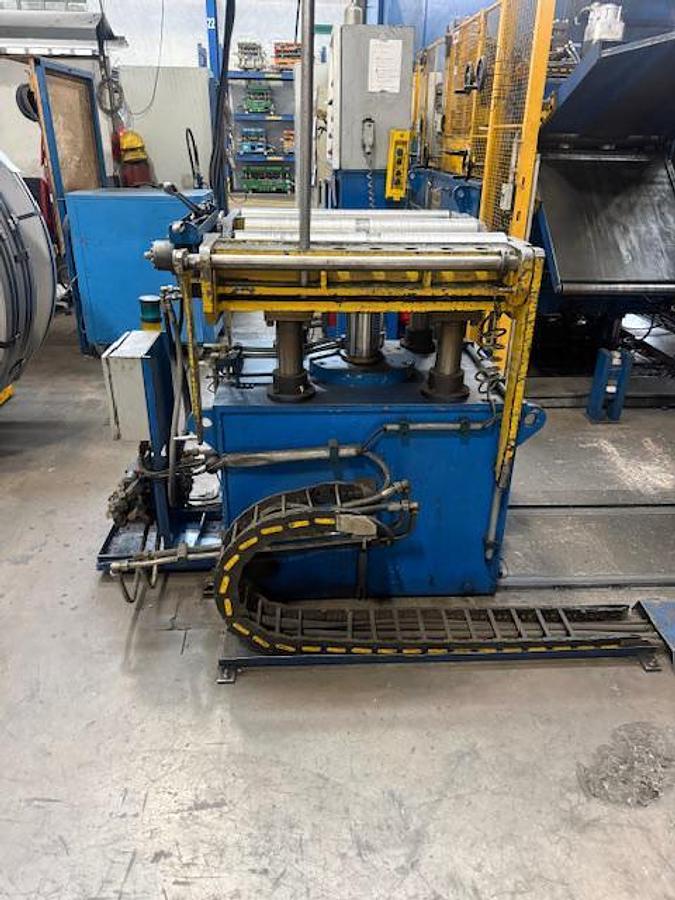

Coil feed system

Coil entry height – max. 300 mm

Coil entry height – min. 250 mm

Reference: measured from top of press table

Strip width – max. 800 mm

Strip width – min. 50 mm

Feed length (at 180° feed angle)

Strip thickness – max. 7 mm

Strip cross-section – max. 2000 mm?

Coil inner diameter – min. 508 mm

Coil outer diameter – max. 1900 mm

Coil weight – max. 15000 kg

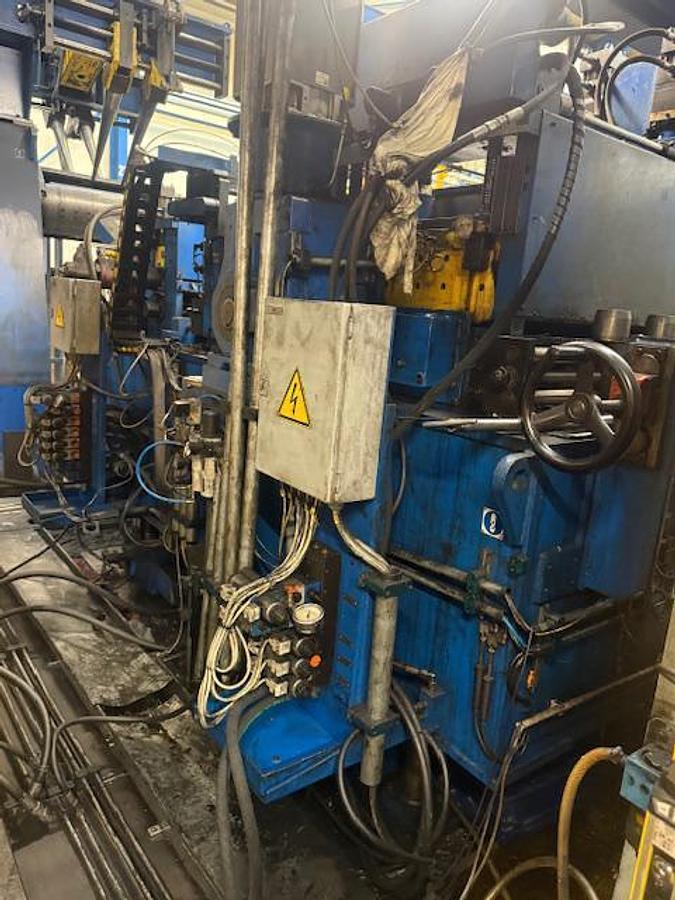

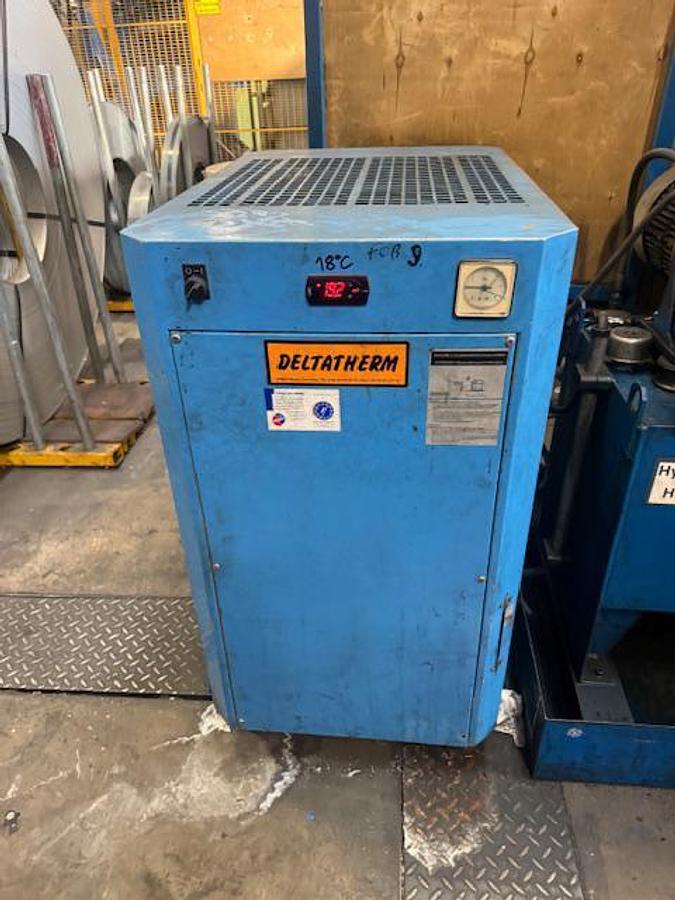

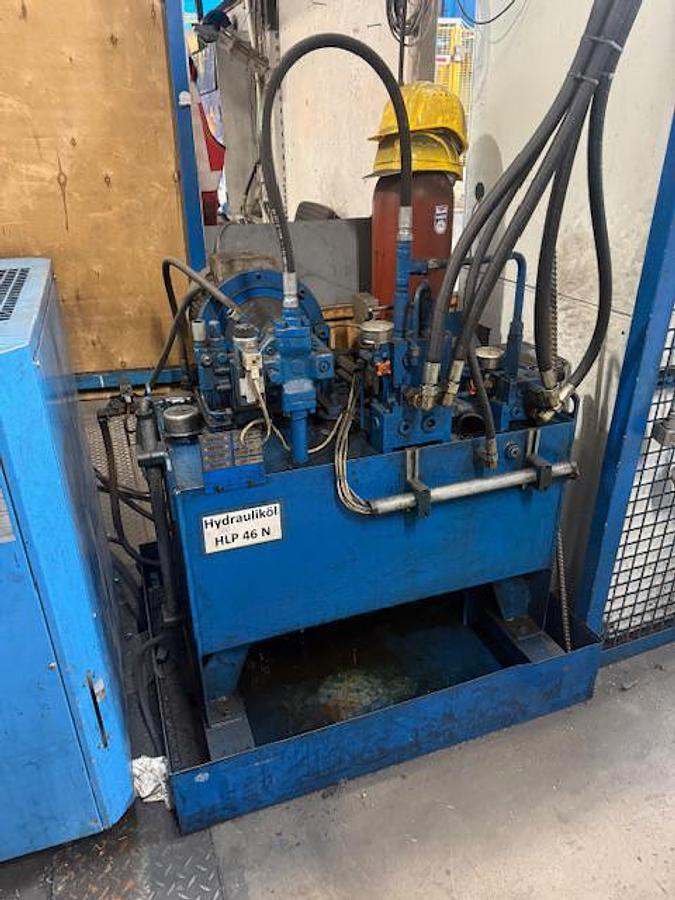

General machine data

Main motor power 121 kW

Machine length 14000 mm

Machine width 6000 mm

Machine footprint: 82 m²

Press width 3300 mm

Press depth 2200 mm

Press height 5000 mm

Machine total weight 50 T
