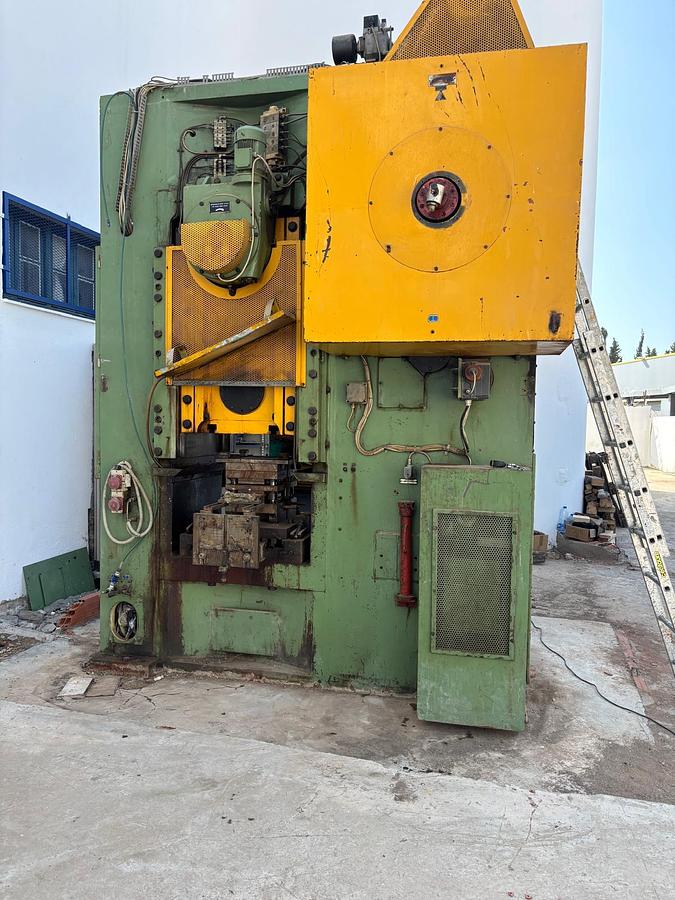

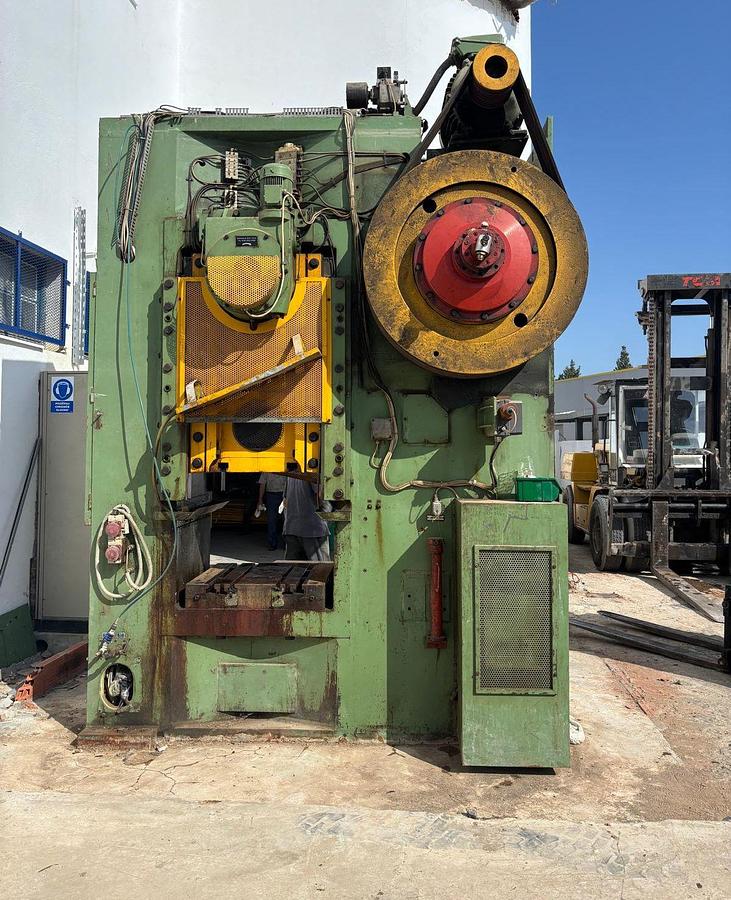

2000 StanItalia Barnaul KB8340B,1000T MECHANICAL KNUCKLE-JOINT PRESS

Nominal power: 1000 ton

adjustable stroke: 170 mm

nominal slide runs per minute: no. 32

slide runs per minute single shot: no. 20

useful stroke of the slide at 100% of the PMI power: 2,5 MM

useful slide stroke at 25% of PMI power. 30 MM

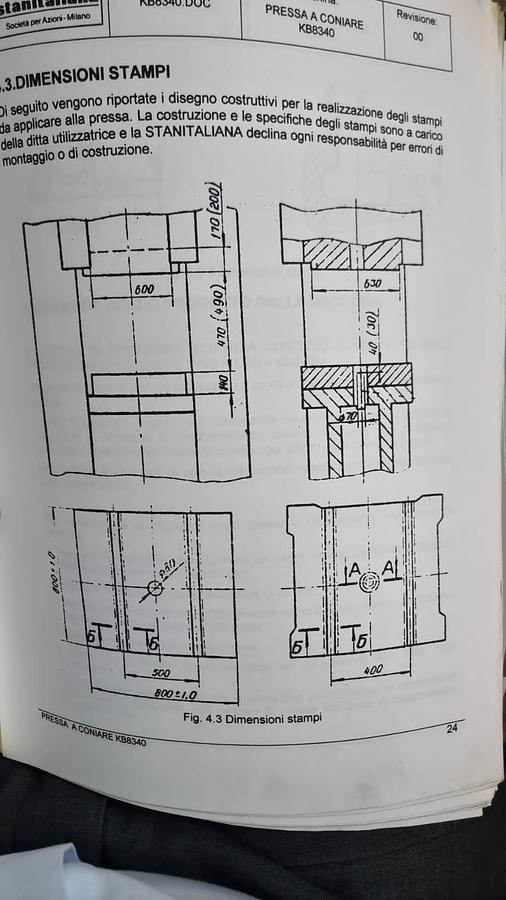

distance between the mold support surface and

the slide at PMI with the adjustment device all the way up: 470 mm

adjustment stroke of the distance between

the mold support surface and the slide: 16 mm

dimension of the mold support surface: 800x800 mm

Slide dimensions: 630x600 mm

minimum stroke of the upper ejector: 16 mm

superior ejection force: 100 kN

minimum stroke of the lower ejector: 100 mm

lower ejection force: 320 kN

Year of construction 2000

Dimensions of machine (mm):

·length 2.950

·width 1.950

·height 4.090

Weight of machine without electric box (kg): 25000
