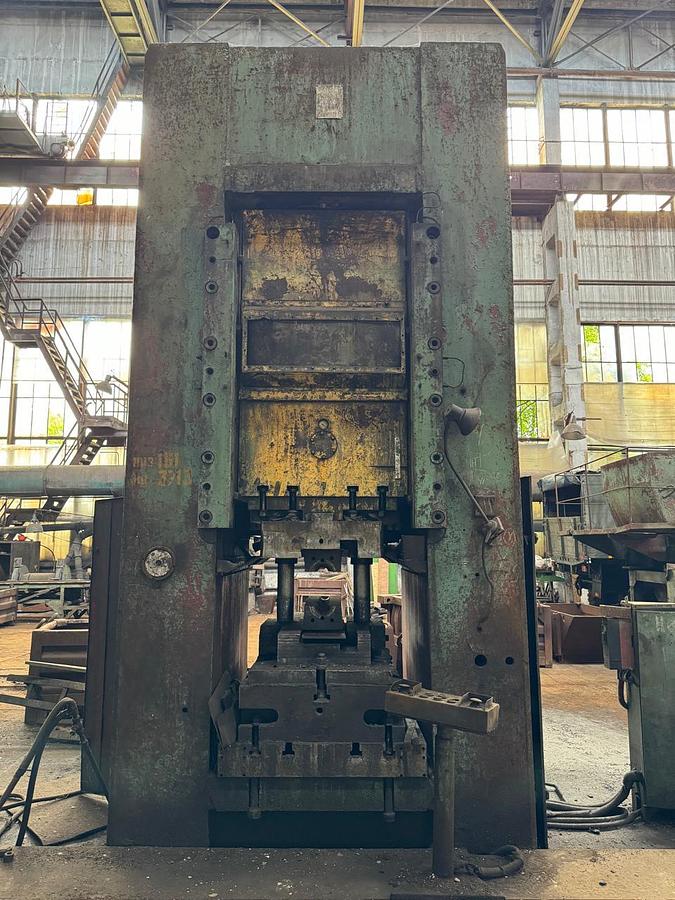

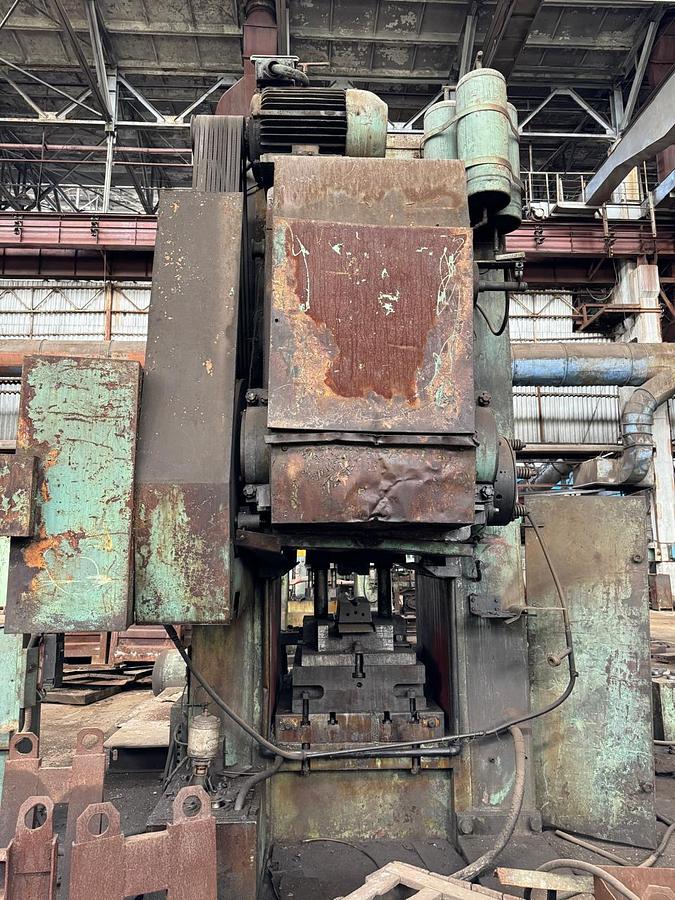

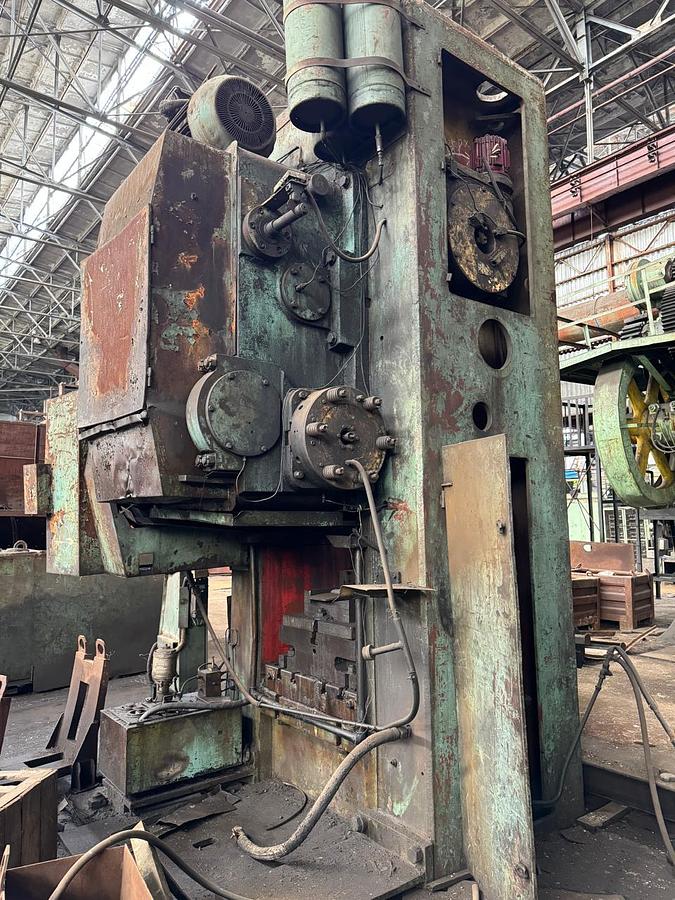

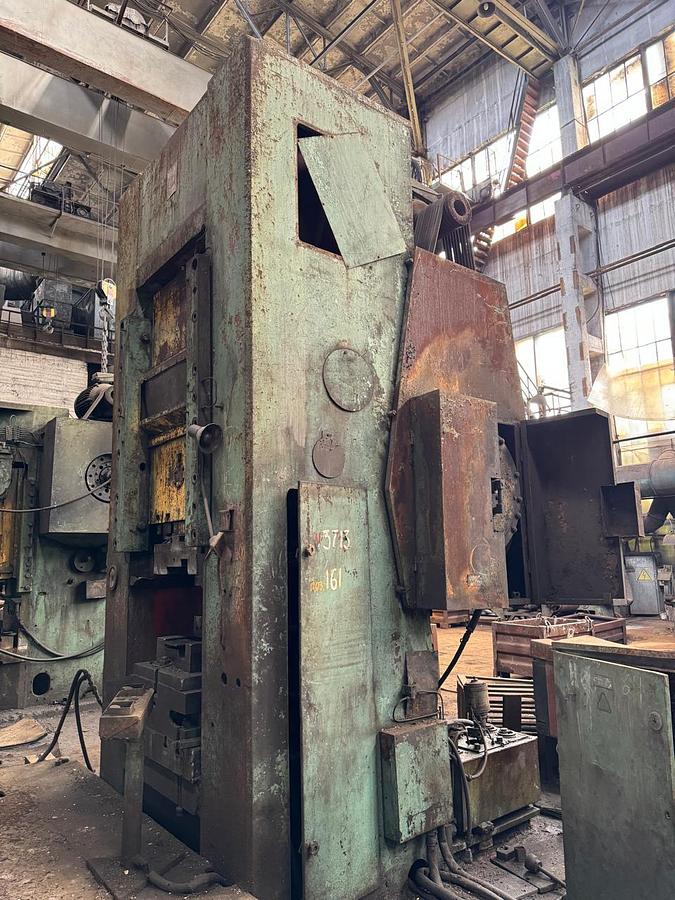

Barnaul AC5752 (K8342) 1600T knuckle-joint coining press

General Specifications

Nominal Force: 16,000 kN (1,600 metric tons)

Total Machine Weight: 48,250 kg (48.25 metric tons)

Work Space and Stroke Parameters

Slide (Ram) Stroke: 180 mm

Maximum Distance Between Bed and Slide (Shut Height): 1,160 mm (at bottom dead center)

Slide Adjustment: 20 mm

Bed (Table) Dimensions: 1,000 mm (width) x 1,250 mm (length)

Performance and Electrical Parameters

Continuous Stroke Rate: 25 min (25 strokes per minute)

Main Drive Motor Power: 61 kW

Overall Dimensions

Length: 2,275 mm

Width: 2,600 mm

Height: 5,170 mm

This specialized equipment is intended for accurate three-dimensional stamping, mintage,

calibrating and extrusion of parts from sheet and graded metal
