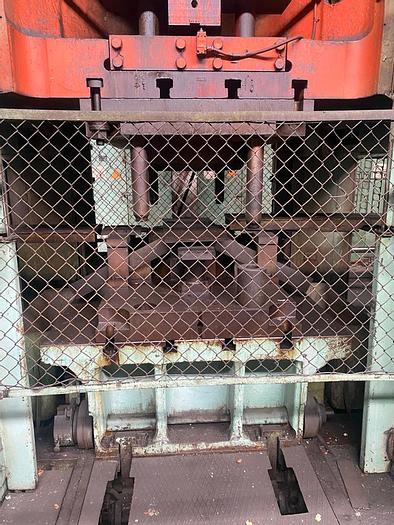

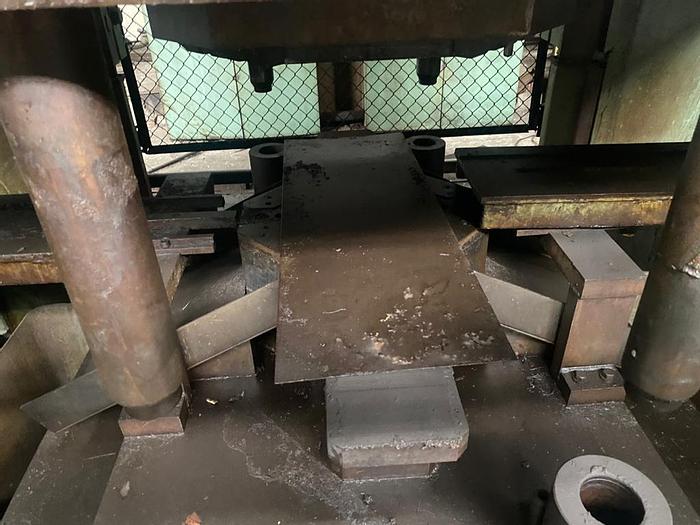

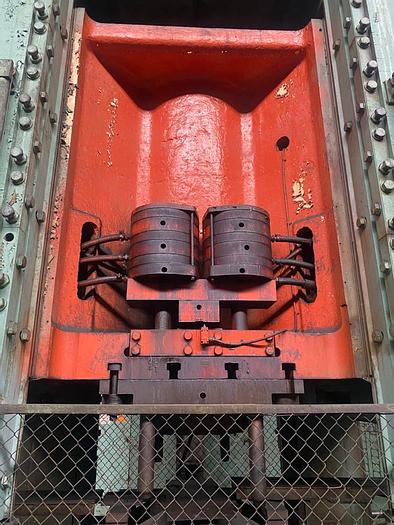

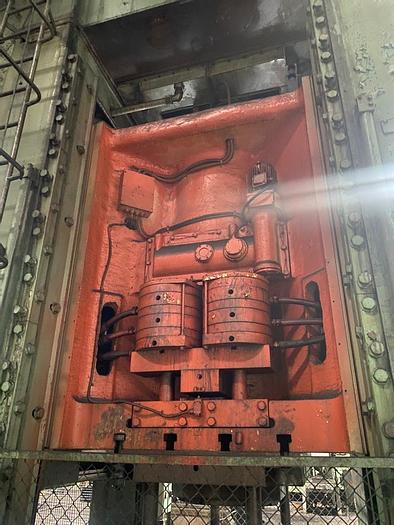

1982 TMP Voronezh K04 150 242(KB2542),1600T Closed single-crank press

orCall +44 20 3287 0537

Specifications

ManufacturerTMP Voronezh
ModelK04 150 242,1600T
Year1982
Stock Number152536802
Maximum force1600 tons
Slider stroke length400 mm
Table size1650x1650 mm
Number of single turn-on12-16
Press weight140 tons

Description

Maximum force: 1600 tons Slider stroke length: 400 mm Unattainable-course: 12 mm Number of courses of a slider per minute: 16 Number of single turn-on: 12 The closed height: 870 mm Adjustment: 220 mm Under-forginig plate: -From left to right: 1600 mm -From front to rear: 1600 mm -Thickness: 650 mm Slider overall dimensions: 1600x1600 mm Aperture in a table: 1000x1000 mm window dimensions in cheeks: 1650x1650 mm Course of a rigid pusher in a slider: 100 mm Force of a rigid pusher in a slider ton-force: 80 Main electric motor power: 110 kW Course of pneumatic pillow: 160 mm Force of pushing out of a pneumatic pillow ton-force: 71 Hydropneumatic pillow: -Working course: 250 mm -Force of pushing out ton-force: 25 -Force of a clip ton-force: 250 Press overall dimensions: 4670x4670x8110 mm Press weight: 140 tons
