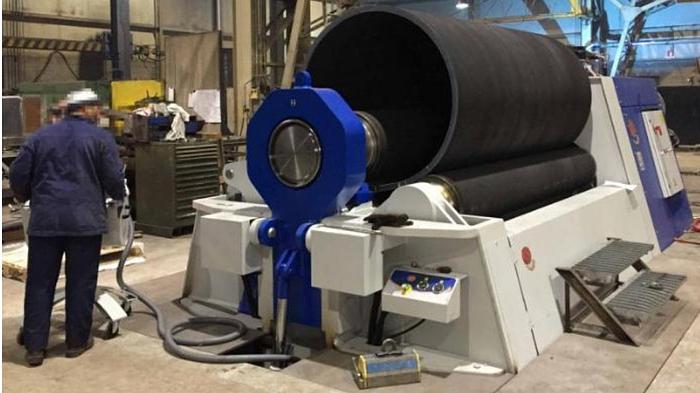

MG MT3060H (3100X60)CNC PLATE BENDING MACHINE-4 ROLL

Weight 44.000Kgs

-Heavy duty model hydraulic

-4 rolls driven motorized each with independent gear unit -

Top roll Ø530 mm special alloy steel high grade hardened

-Conical plate bending attachment with all the lower rolls tiltable

-Digital readout for bending operator, with CNC programmable for automatic rolling.

-Infinitely variable running speed traction power stepless 0 to 6 mtr/min

-Electric installed 75 Hp on centralized hydraulic power

unit -Voltage Vac 400/50

-Control console electric movable on wheels with CNC controller digital 15" wide-screen readout programmable

Capacity plate width 3100 mm

Thickness 60 mm

Pre-bend thickness 50 mm

Max capacity rolling thickness 80 mm

Minimum bending diameter Ø 600 mm depending on the plate thickness and yield grade

Machine delivered in perfect conditions like a new with warranty coverage origina

Configuration installed

-Hardened surface high strength of the 4 rolls

-Driven powered rolls with gear box axial and hydraulic motor independent synchronized the 4

rolls -Conical plate bending installation , rolls tilt angle independent, contrast roller type hardened

-Calibration hydraulic system automatic for re-rolling of welded shells -Hydraulic drop-end front

opening to unload the closed shells.

Construction data

-Rolls installed on sealed permanent lubricated bearings.

-Hydraulic latest technology , variable rolling speed synchro automatic

-Centralized control panel with directional joysticks and CNC with digital

readout. -Emergency and safety installation in compliance with machine tools

regulation. -Instruction and service manuals along with the machine
